• turning diameter over bed400 mm
• turning diameter over slide rest210 mm
• turning length1060 mm
• centre height200 mm
• spindle bore58 mm
• spindle taper: CamlockD 1-6
• Drive3,2/4,9 kW
• spindle turning speed range16, von 55 bis 1600 U/min
• feeds - longitudinal0,039-0,541 mm/U
• feeds cross0,019-0,271 mm/min.
• weight of the machine ca.1,45 t
• dimensions of the machine ca.1900 x 870 x 1700 mm

Zusatz

• Condition: ready for operation
• Condition: good

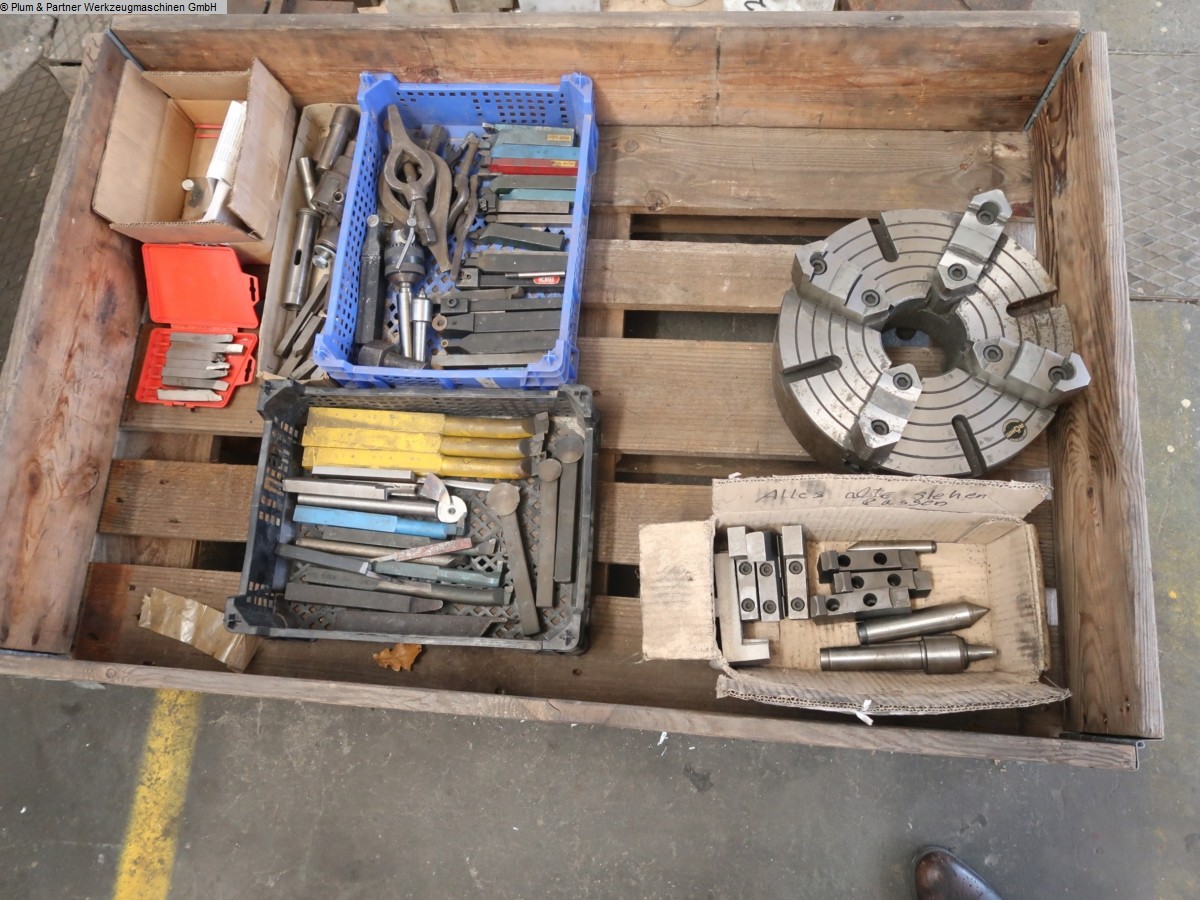

Zubehör

• Electric 380 Volt

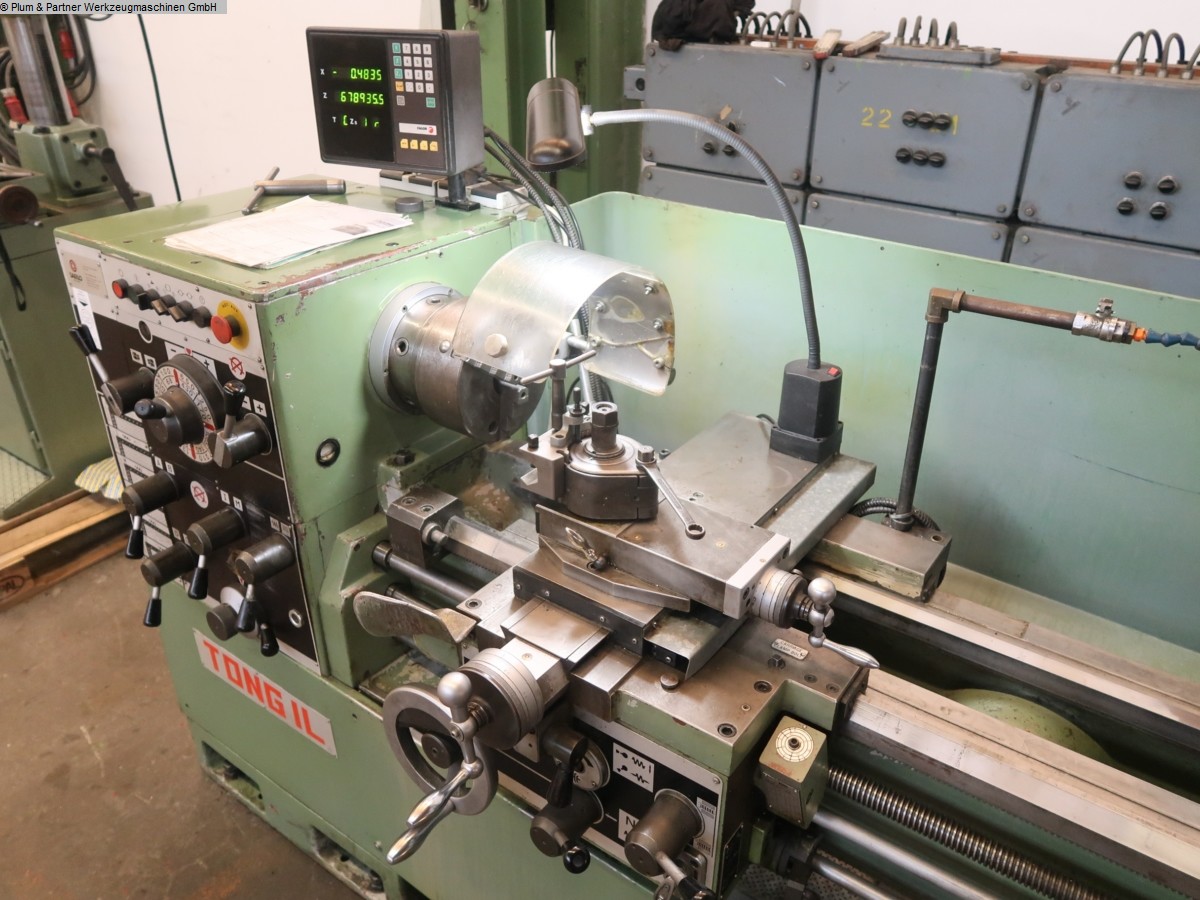

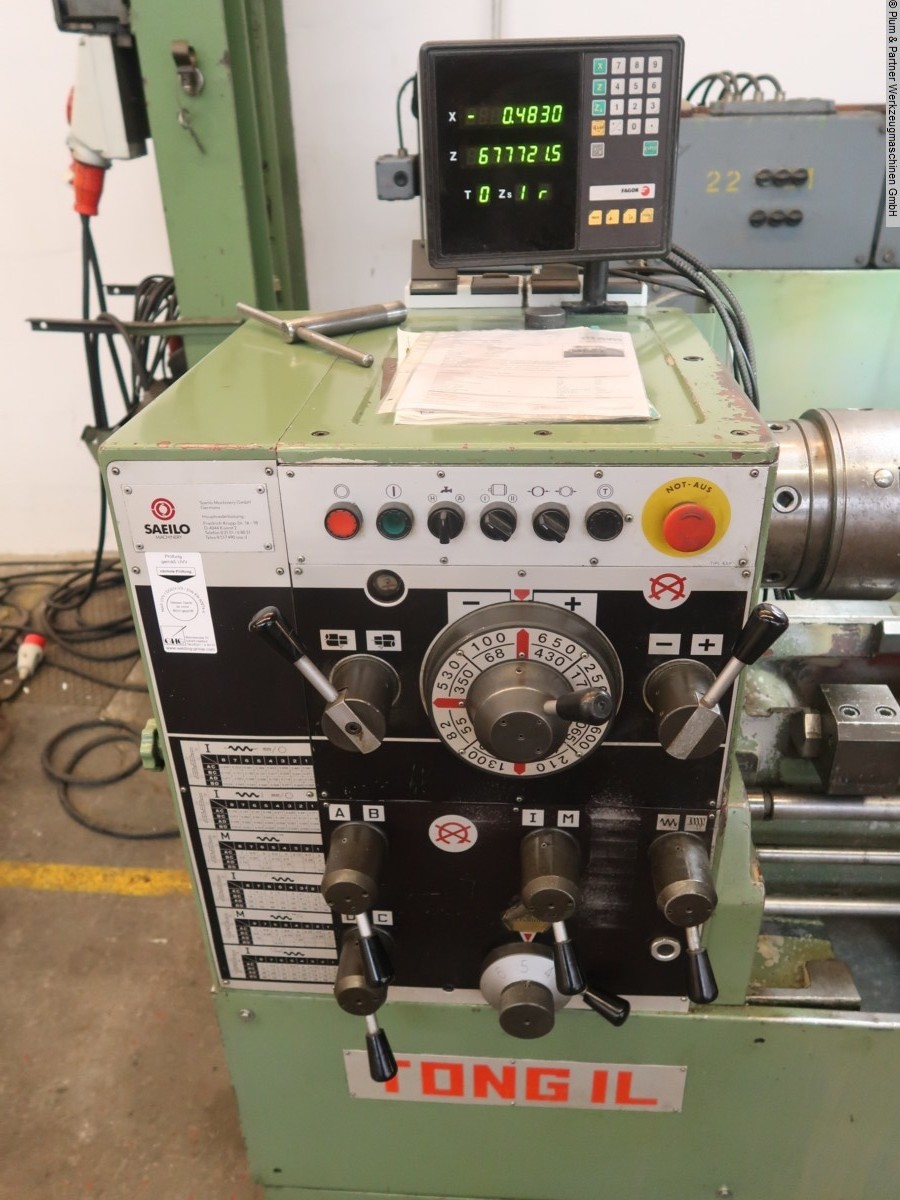

• 3-axis digital readoutFagor VN 300 T
• 3 jaw chuckRöhm F 200 mm

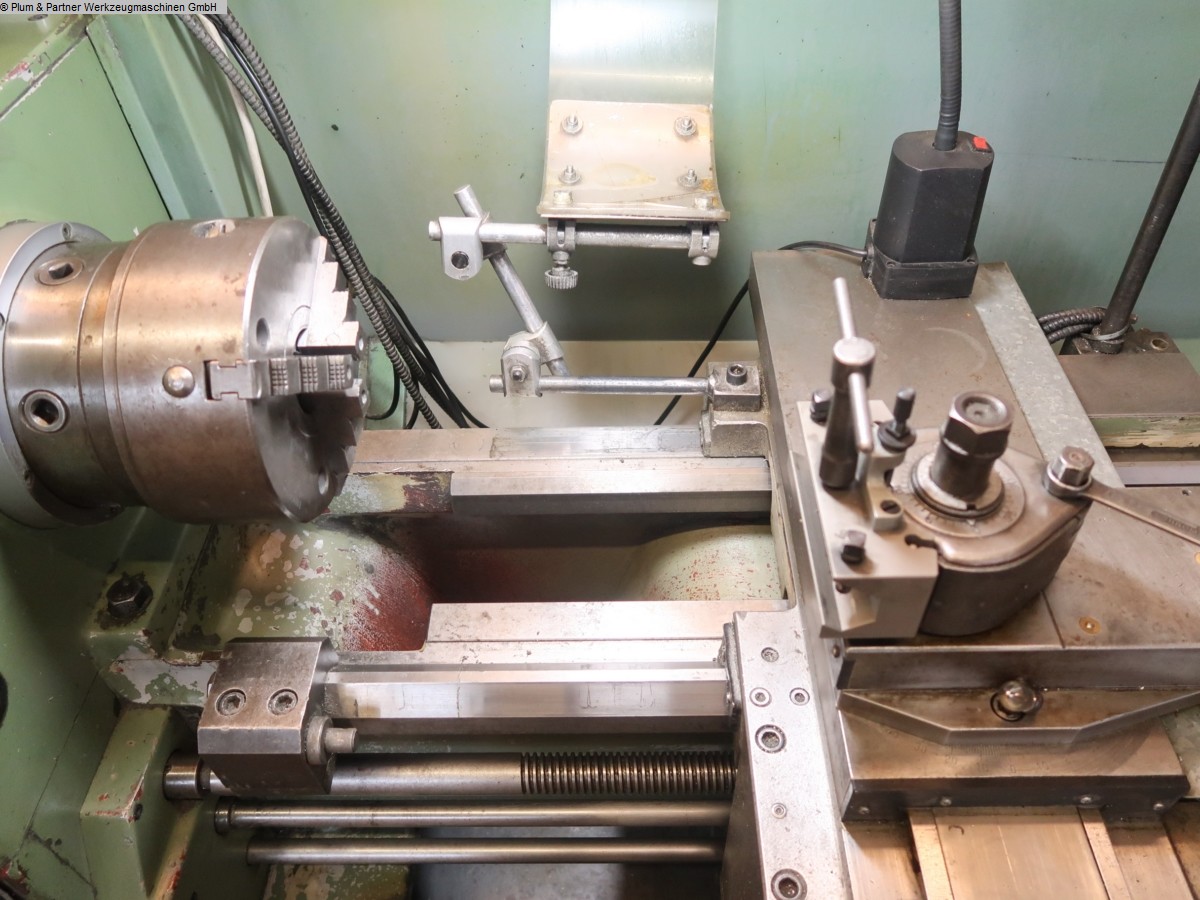

• Multifix-steel holderTyp B
• Foot brake
• Cooling equipment
• Rear chip protect
• chip pan
• Machinelight
• Center
• FaceplateRöhm 300 mm
• Boring chuck

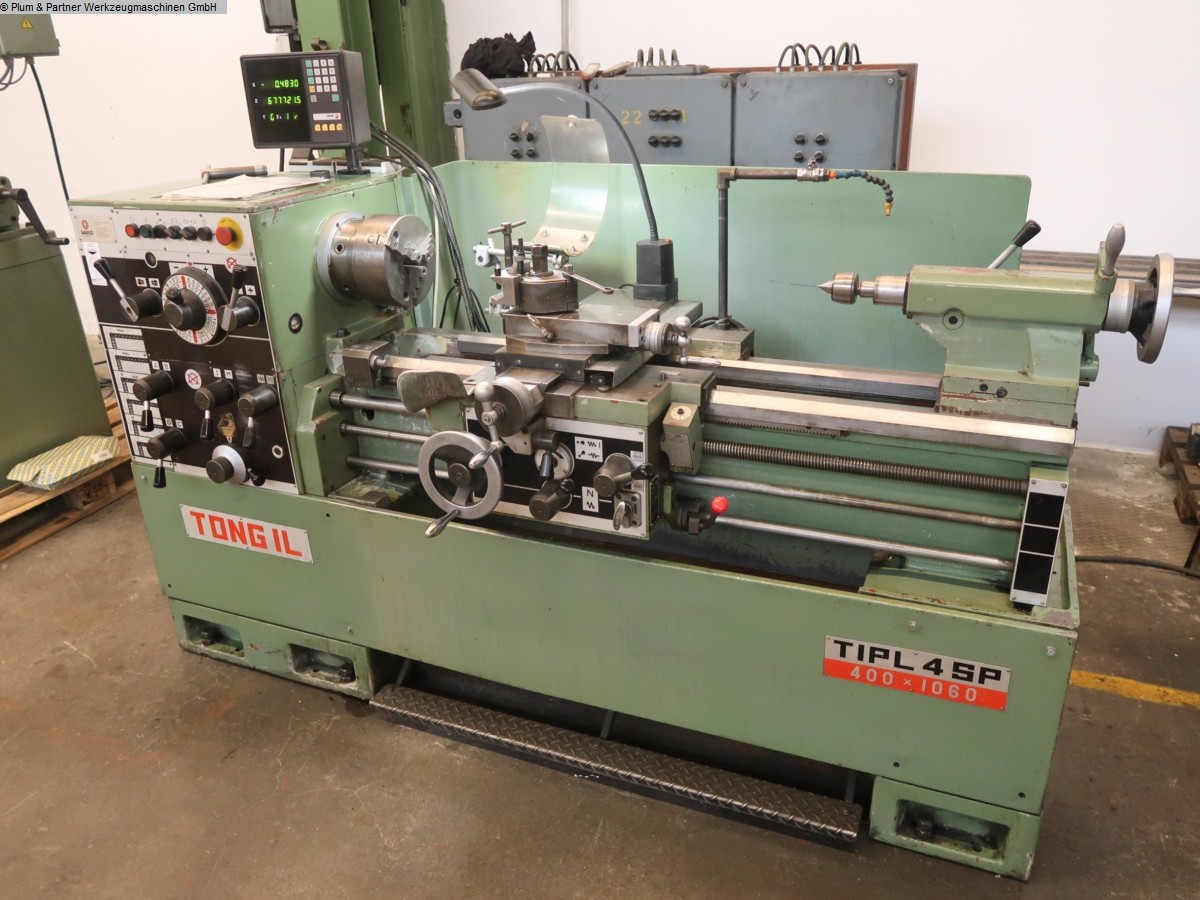

High-quality machine with induction-hardened guideways, torsionally rigid bed, main spindle made of chrome-nickel steel, surface-hardened and ground gears, automatic circulating lubrication in the spindle housing, slip clutch in the support, bed lubrication via hand pump, Siemens electrical system. Thread feeds for metric, inch, module, and diametral pitch. 3-axis digital readout: 2 scales are mounted, the scale on the top slide has been replaced but still needs to be mounted. The display unit is for lathes and therefore, with the appropriate setting, adds the slide travel to the top slide travel. The machine was only used in a prototype workshop for sporadic applications. Machine dealer with own stock of 1600 m².
