• turning diameter over bed800 mm
• turning diameter over slide rest480 mm
• turning length3000 mm
• turning diameter in the slot850 mm
• center height over bed380 mm
• bed width550 mm
• spindle headDIN 55022/8
• spindle bore73 mm
• speeds18 - 900 U/min

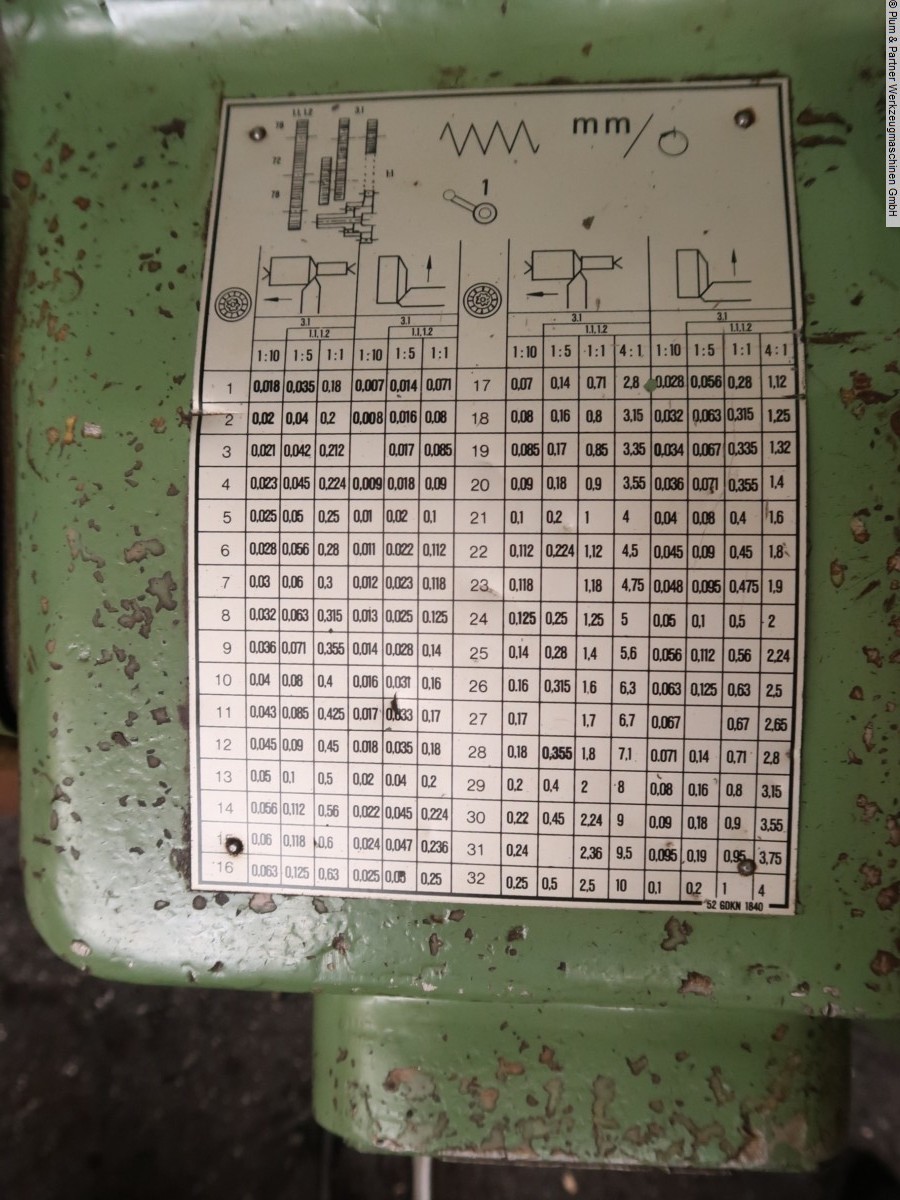

• feeds224 / 0,018-10 mm/U
• thread - mm pitchca. 84: 0,2 - 224 mm
• total power requirement17,5 kW
• weight of the machine ca.8,6 t
• dimensions of the machine ca.5,5 x 1,8 x 1,72 m

Zusatz

• Condition: ready for operation
• Video(s) available on our website.

Zubehör

• Electric 380 Volt

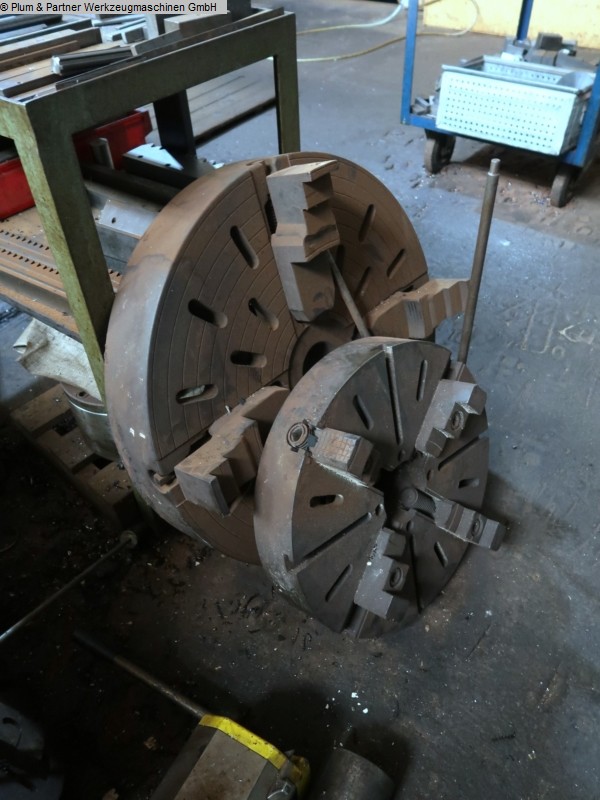

• 3 jaw chuck500 mm
• Faceplate720 mm
• Faceplate500 mm
• Roll steady, fixed450 mm
• Roll steady, fixed250 mm
• Tool holder system MultifixTyp B

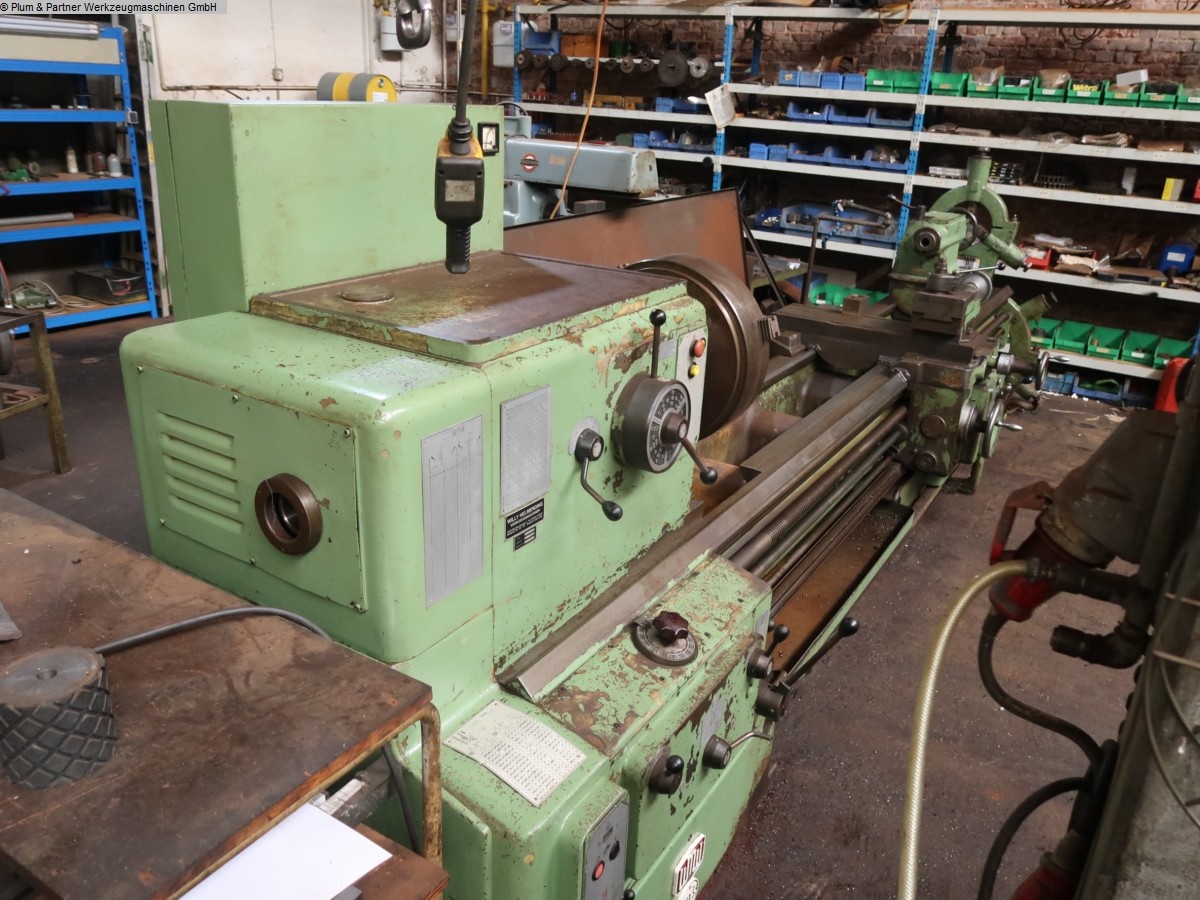

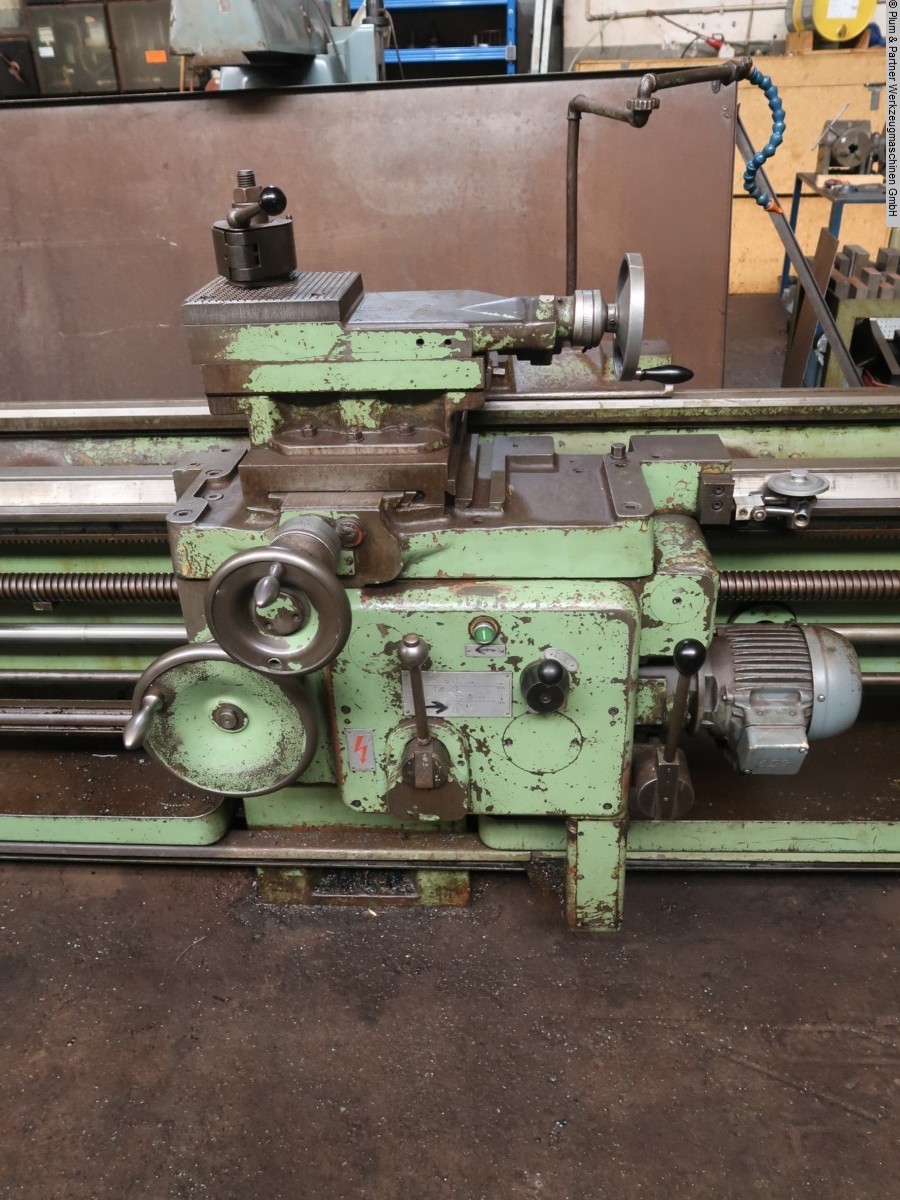

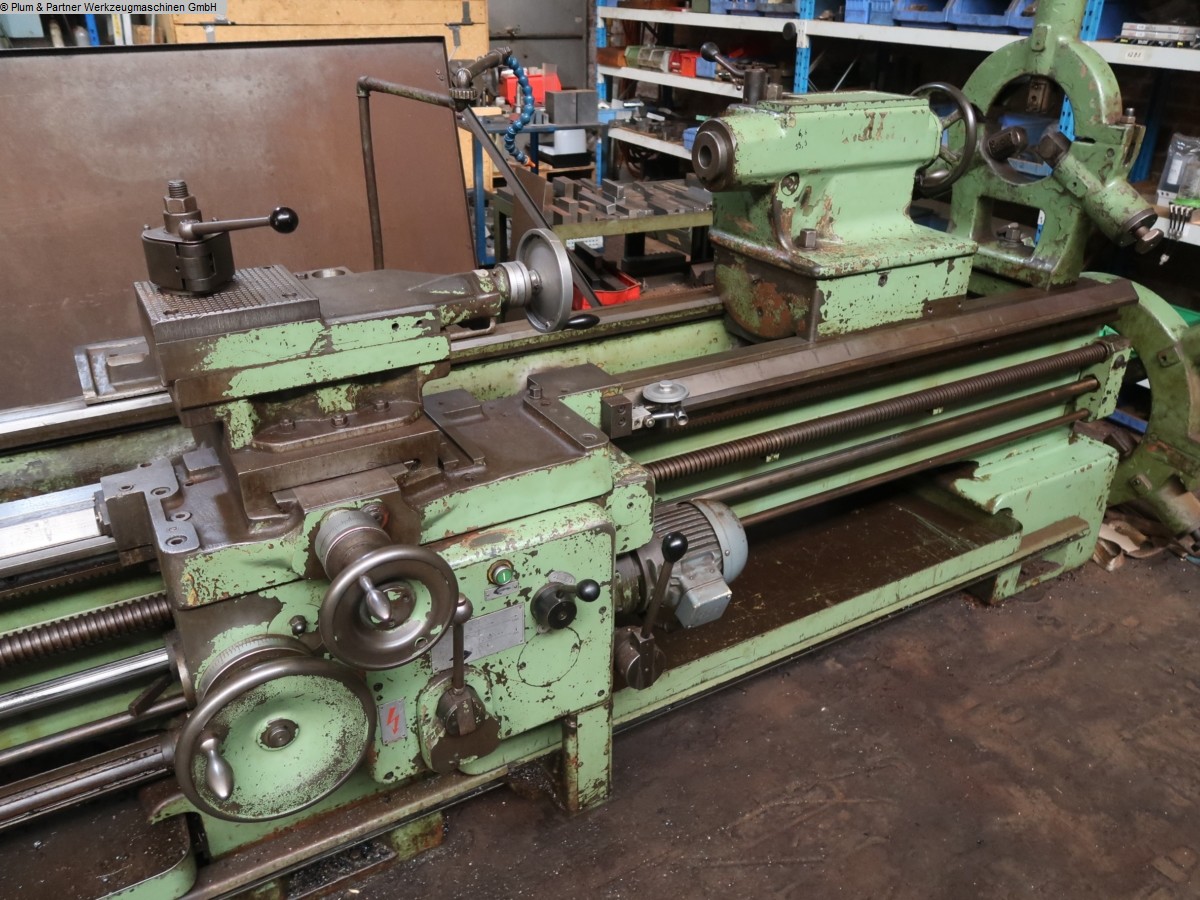

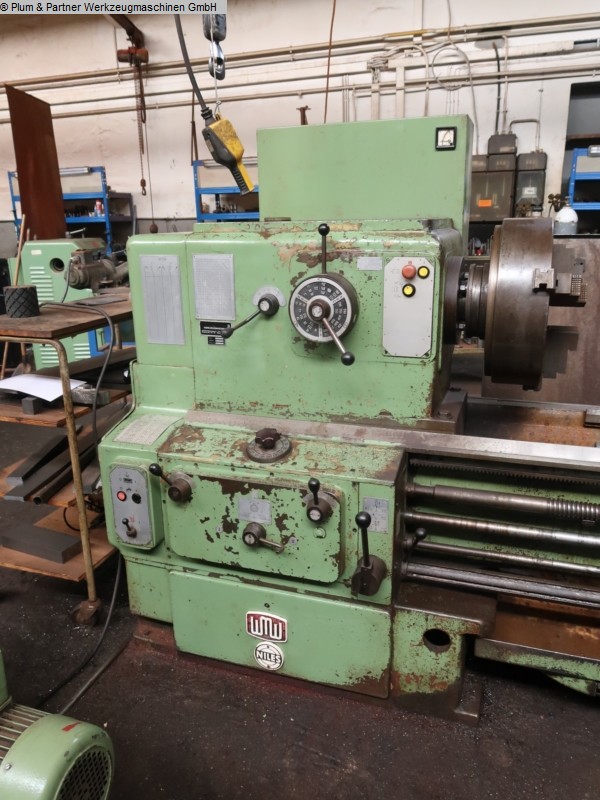

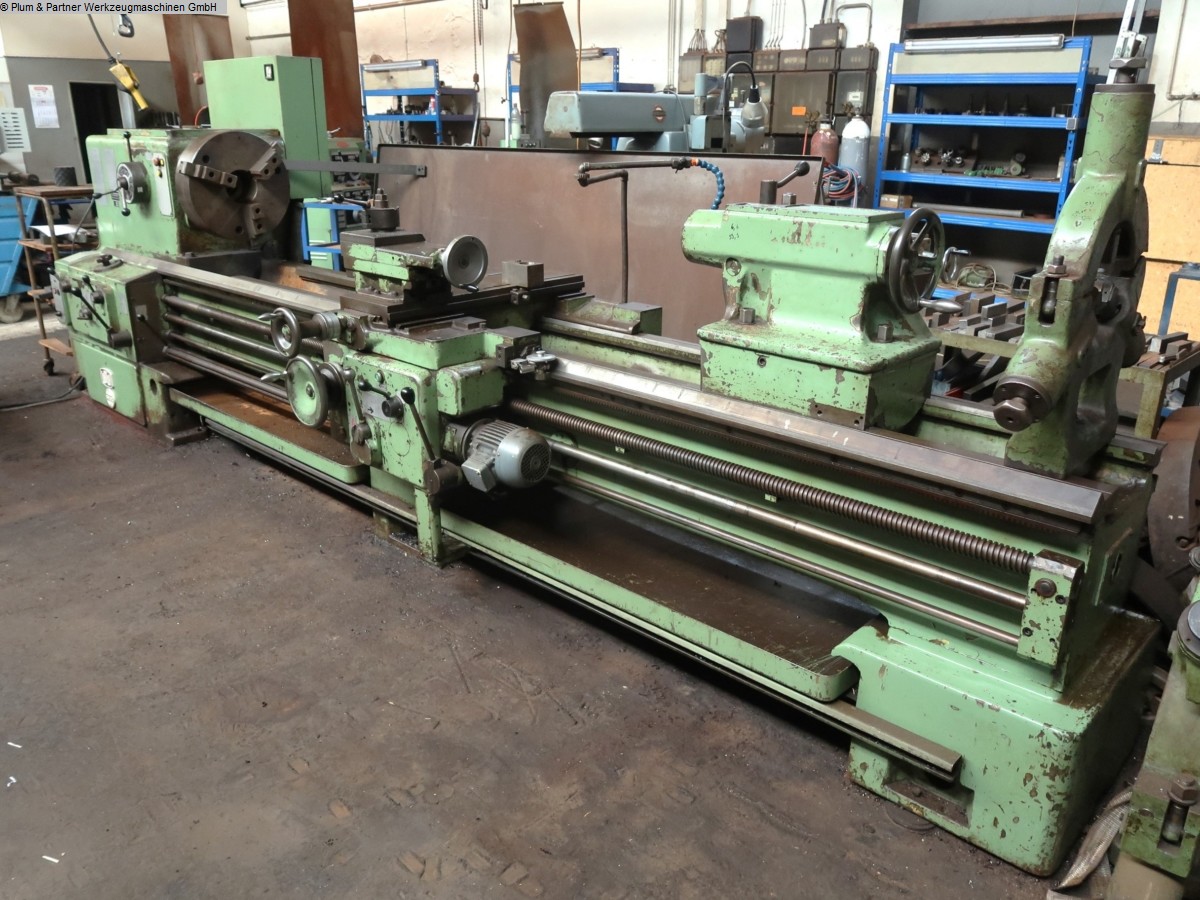

Solid universal lathe with rapid longitudinal and transverse support traverse, pole-changing spindle motor (i.e., two speeds can be selected by increasing the motor speed), single-lever control for all support movements, pre-selected feed rates, hardened bed guides, double-tiebar bed for high rigidity, high- positioned front guideway and low-positioned rear guideway in the V-prism for high accuracy, and triple bearings for the lathe spindle, threads in mm, inches and diametrical pitch. The year of manufacture is estimated. Many accessories! Machine dealer with own stock of 1600 m².
