• bore capacity in steel (diameter)32 mm
• throat290 mm
• bore stroke150 mm
• spindle turning speed - stepless80 - 1170 U/min
• spindle taper MT3
• table-size480 x 400 mm
• total power requirement0,9 / 1,3 kW
• weight of the machine ca.420 kg
• dimensions of the machine ca.0,6 x 0,6 x 2,1 m

Zubehör

• Electric 400 Volt
• Boring chuck
• Autom. feed
• Stepless turning speed regulation
• pole-changing motor
• Cooling equipment

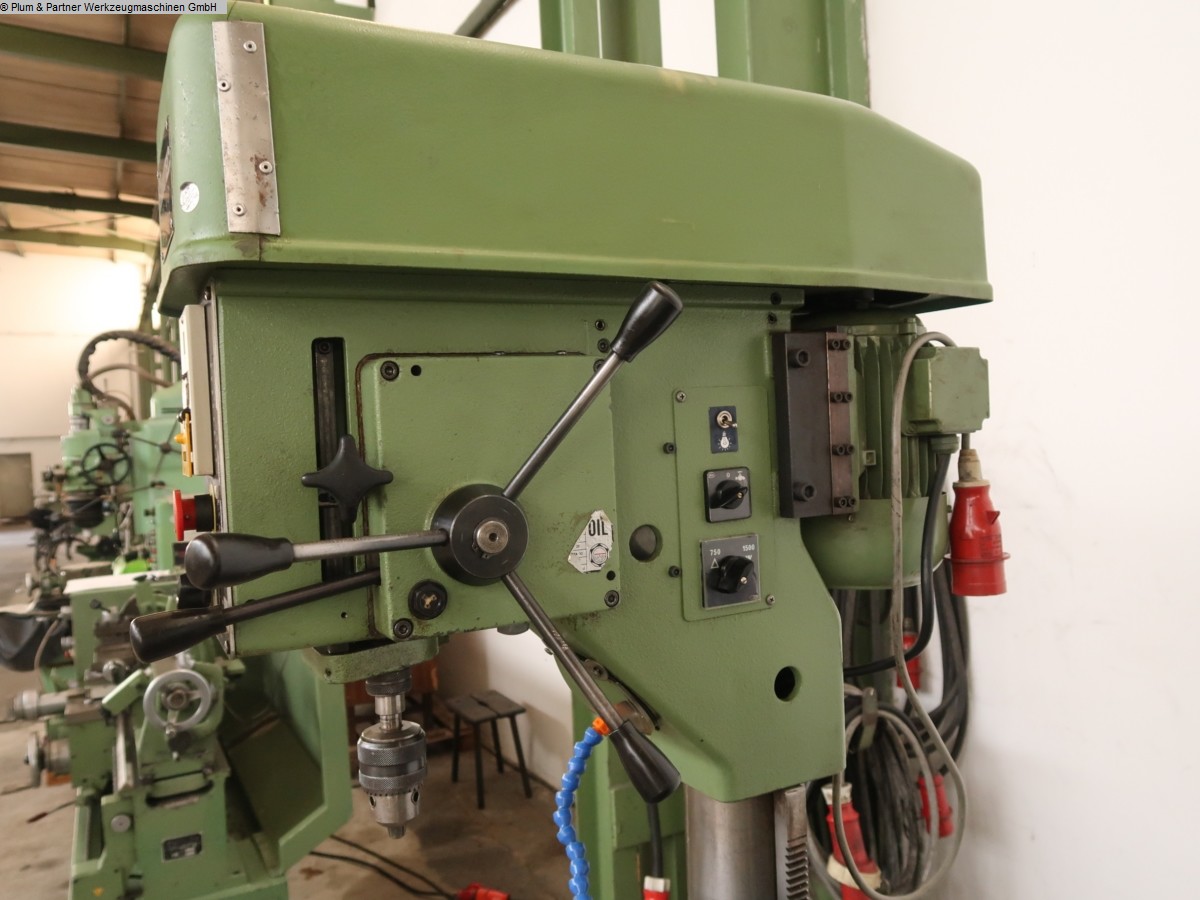

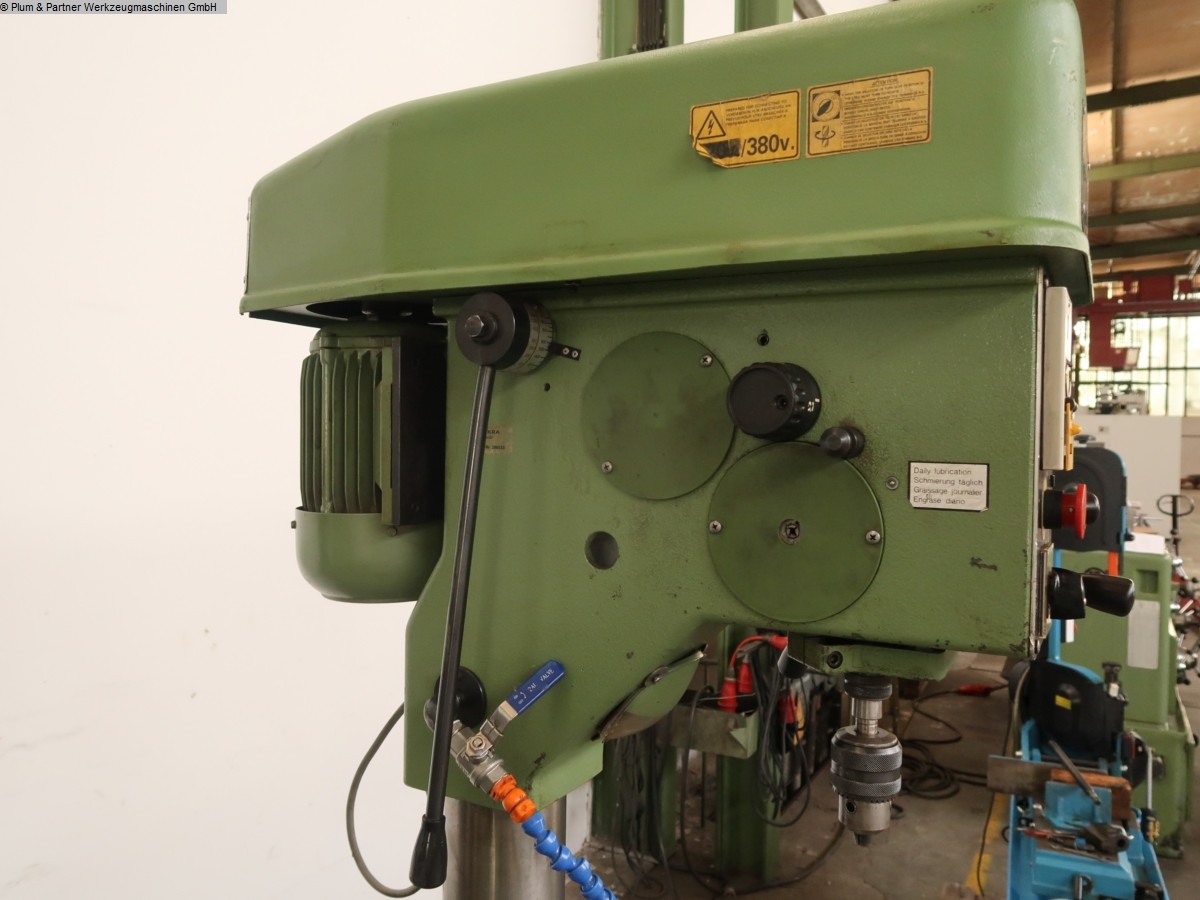

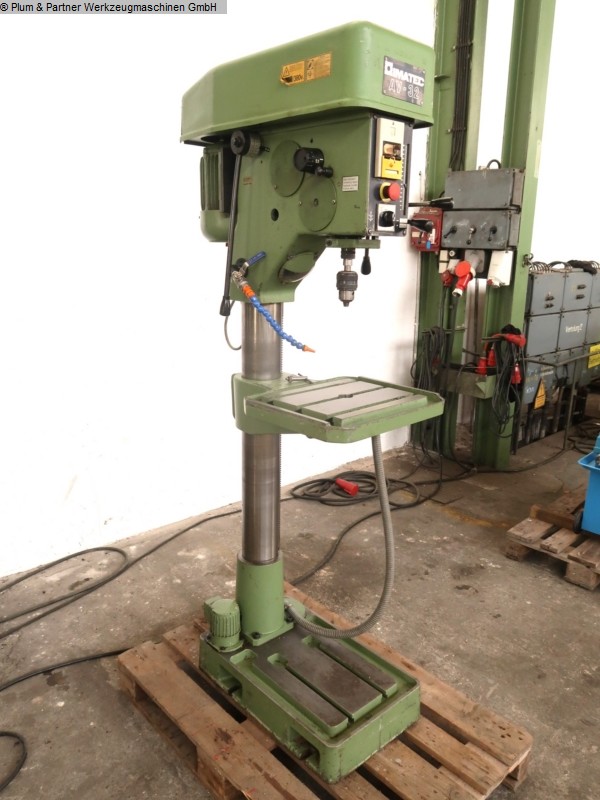

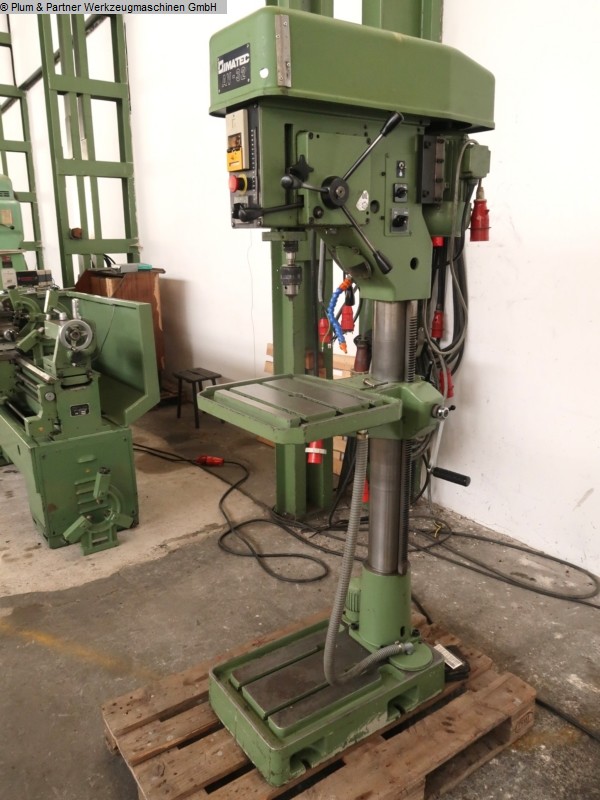

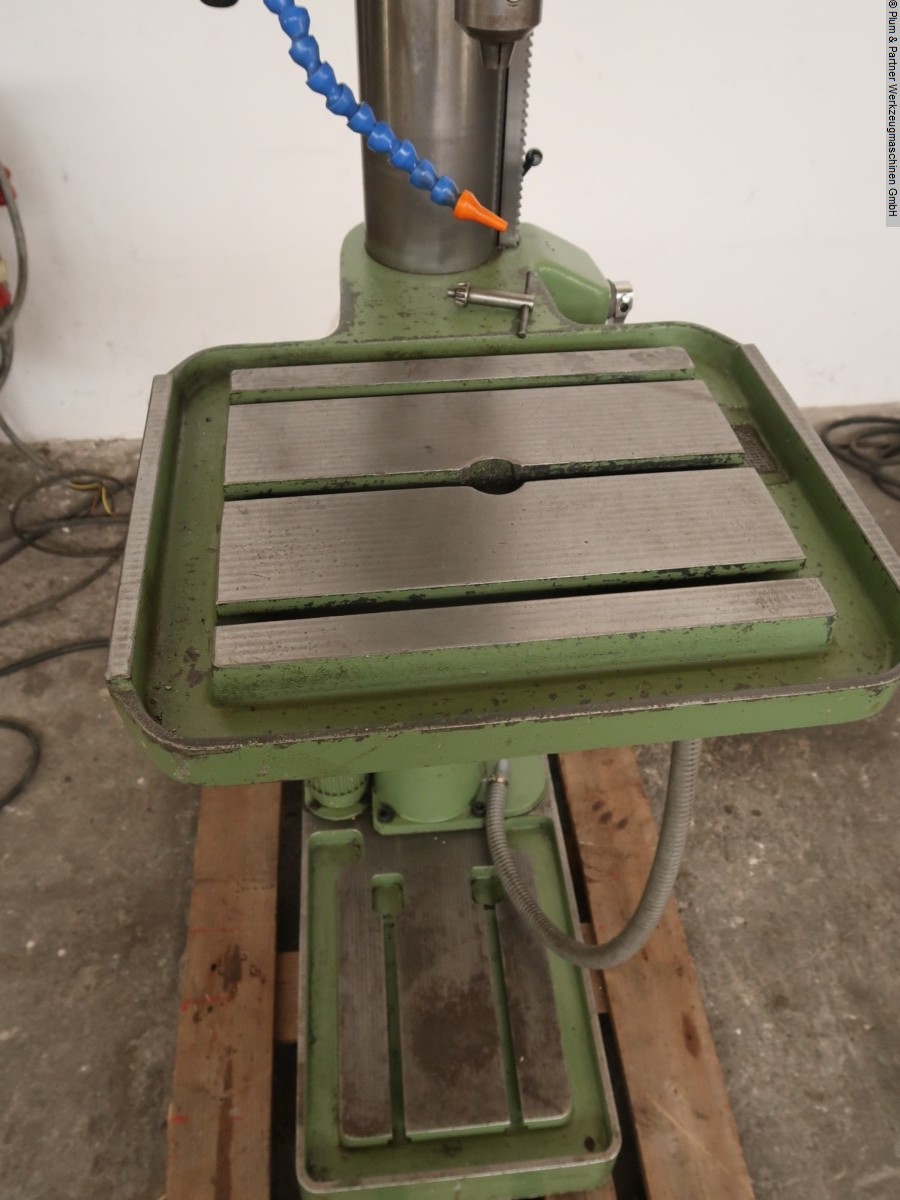

A pillar drill press from a school that has seen little use, featuring infinitely variable speed control, a 2-speed motor, automatic spindle feed, reverse and reverse rotation, a rack-and-pinion table with adjustable table height, and a coolant pump. The year of manufacture is estimated! Machine dealer with own stock of 1600 m².
