• turning diameter290 mm
• turning length204 mm

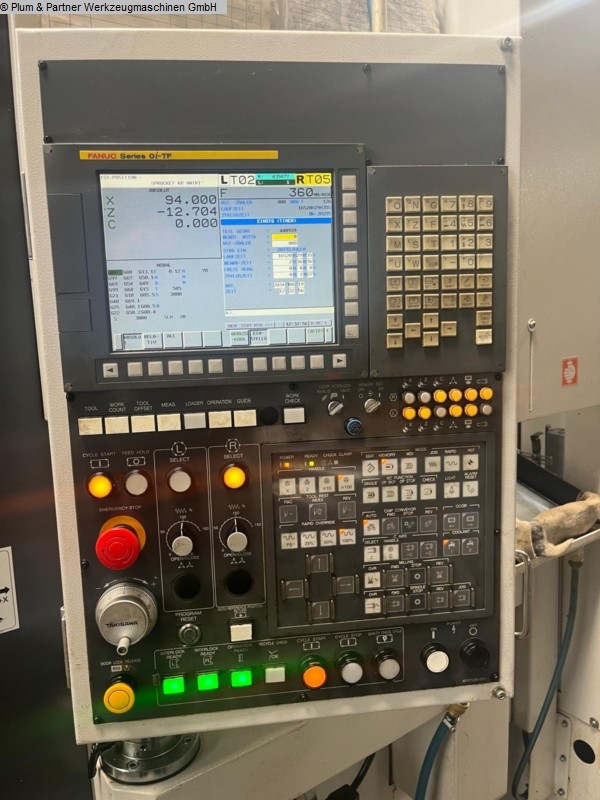

• controlFanuc 31i - Model B
• Number of working hours4185 + 9159 h
• number of spindles2 Stück
• spindle turning speed rangemax. 3200 U/min
• x-travel230 mm
• z-travel250 mm
• distance between the spindle noses450 mm
• spindle noseA 2 - 6
• spindle bore73 mm

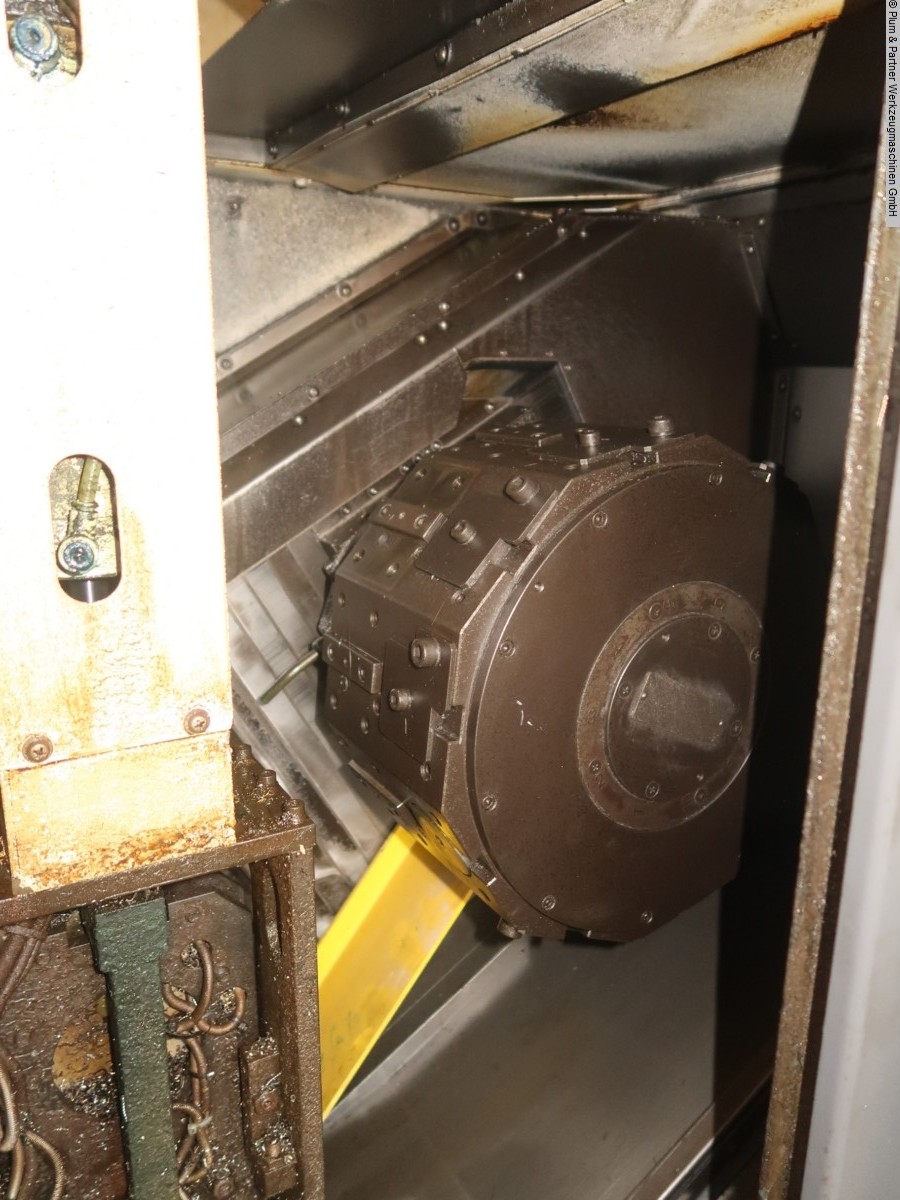

• tool turret with 10 work positions2 x
• workpiece feeding device

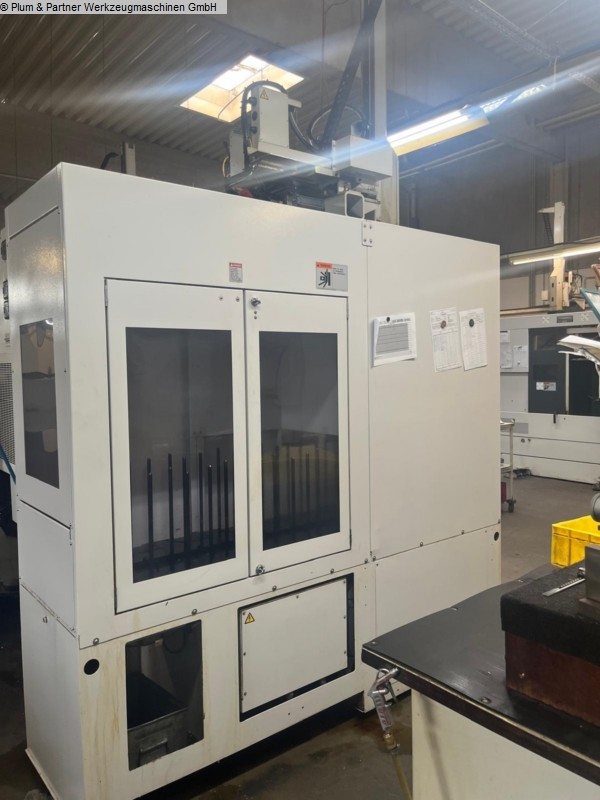

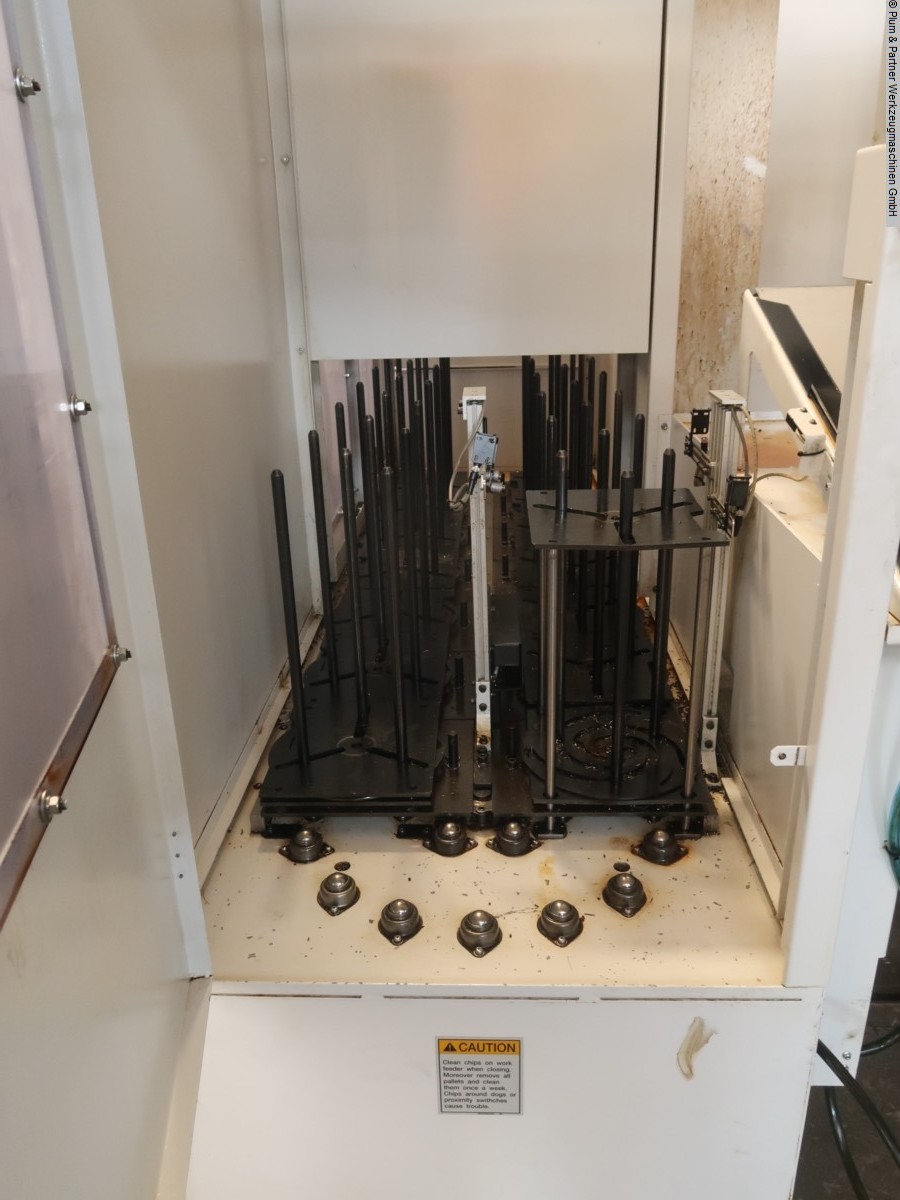

• workpiece magazin14 Stück
• max. workpiece diameter200 mm
• workpiece weight max.2 x 8 kg
• workpiece length - max.120 mm
• rapid traverse24 m/min
• feed - longitudinal/cross0 - 1260 mm/min
• spindle motor11/15 kW
• Driven tools3,7/5,5 kW
• turning speed of the driven tools4000 U/min.
• total power requirement61 kVA
• weight of the machine ca.6,3 t
• dimensions of the machine ca.3,1 x 2,9 x 3,6 mm

Zusatz

• CE signed
• Condition: Not more under power
• Video available on our website

Zubehör

• Electric 400 Volt
• Power clamp.chuckHowa
• Chip conveyor
• Cooling equipmentScharnierband-
• Central lubrication
• Lighting og working area
• Workpiece counter
• Foot switchFutter

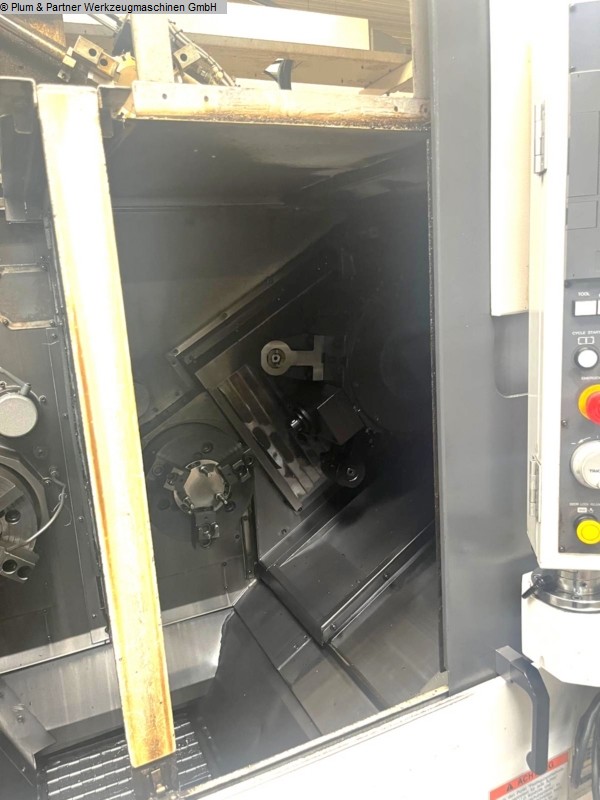

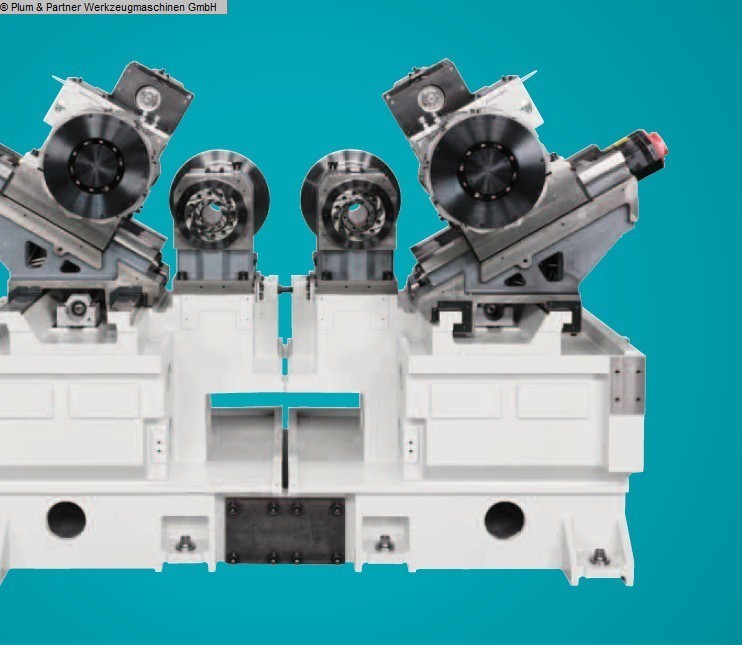

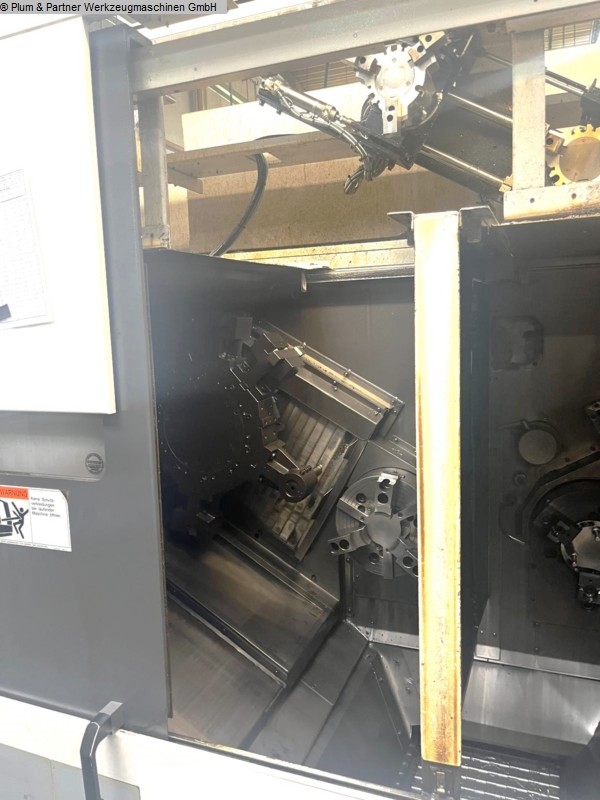

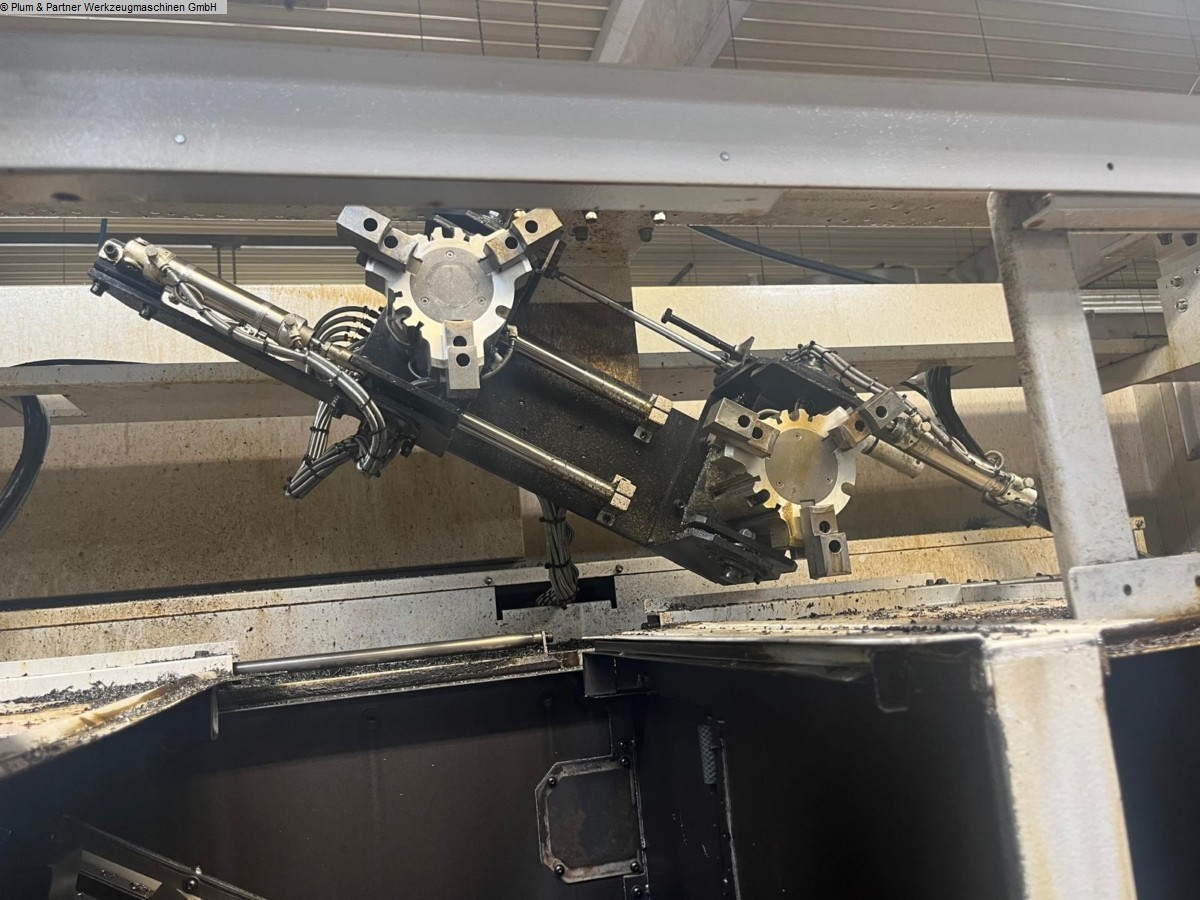

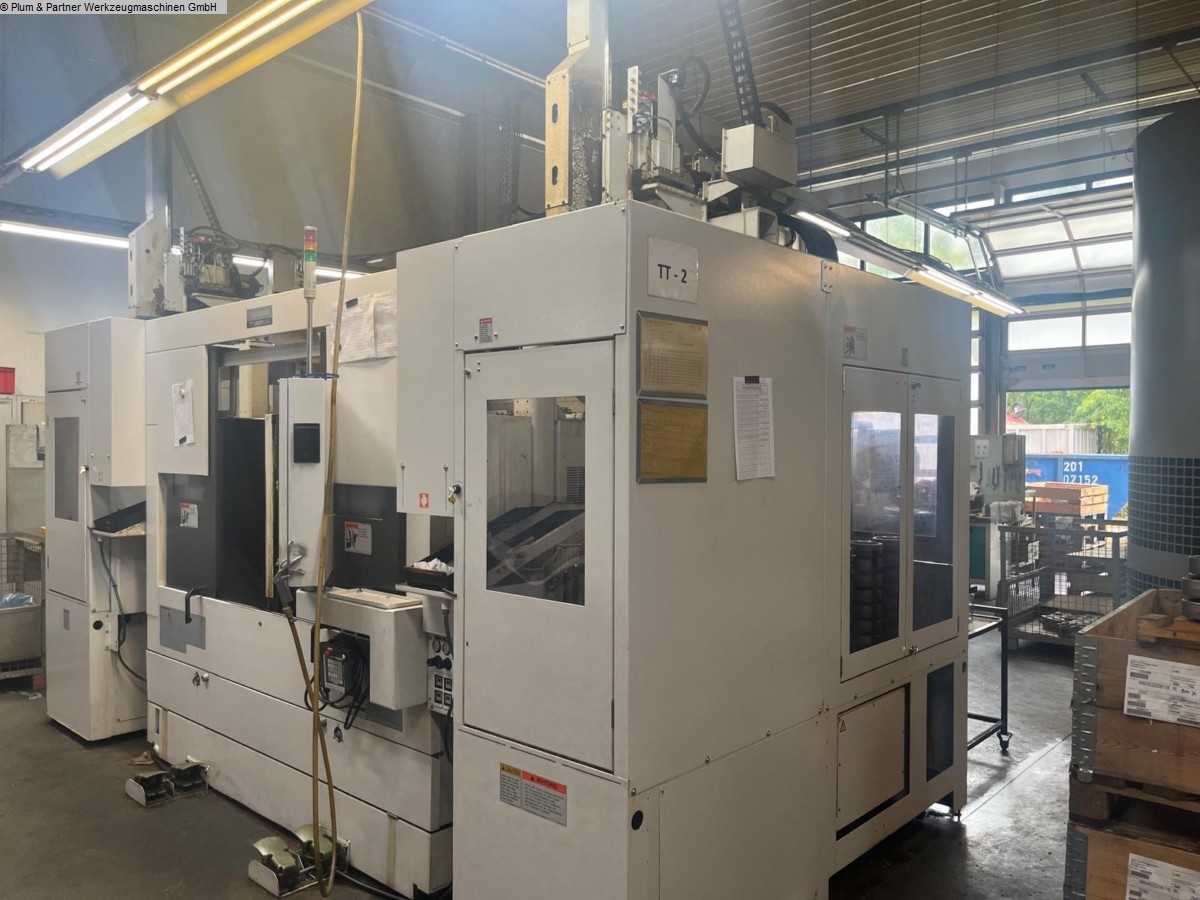

Front lathe - Horizontal double spindle machine with gantry loader Raku Raku and workpiece magazine on both sides, C-axis and 10-way turret for both sides with driven tools on just the right side, 14-way workpiece pallet magazine. Machine dealer with own stock of 1600 m².
