• turning diameter410 mm
• turning length495 mm

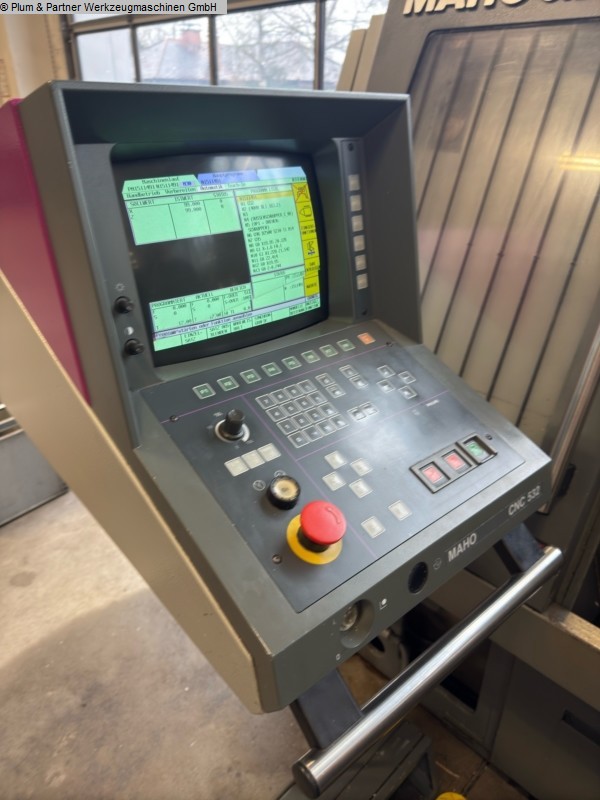

• controlPhilips CNC 532
• turning dia. over face-slide220 mm
• turning speed range20 - 6000 U/min
• spindle headA 2 5 "
• turret (x-stations)12
• spindle bore42 mm
• Number of working hours12760 h
• tailstock quill taper MT3
• quill stroke80 mm
• diameter of quill55 mm
• total power requirement11,3 kW
• weight of the machine ca.3 t
• dimensions of the machine ca.2, x 2,15 x 1,8 m

Zusatz

• Condition: ready for operation
• Video available on our website

Zubehör

• Electric 380 Volt

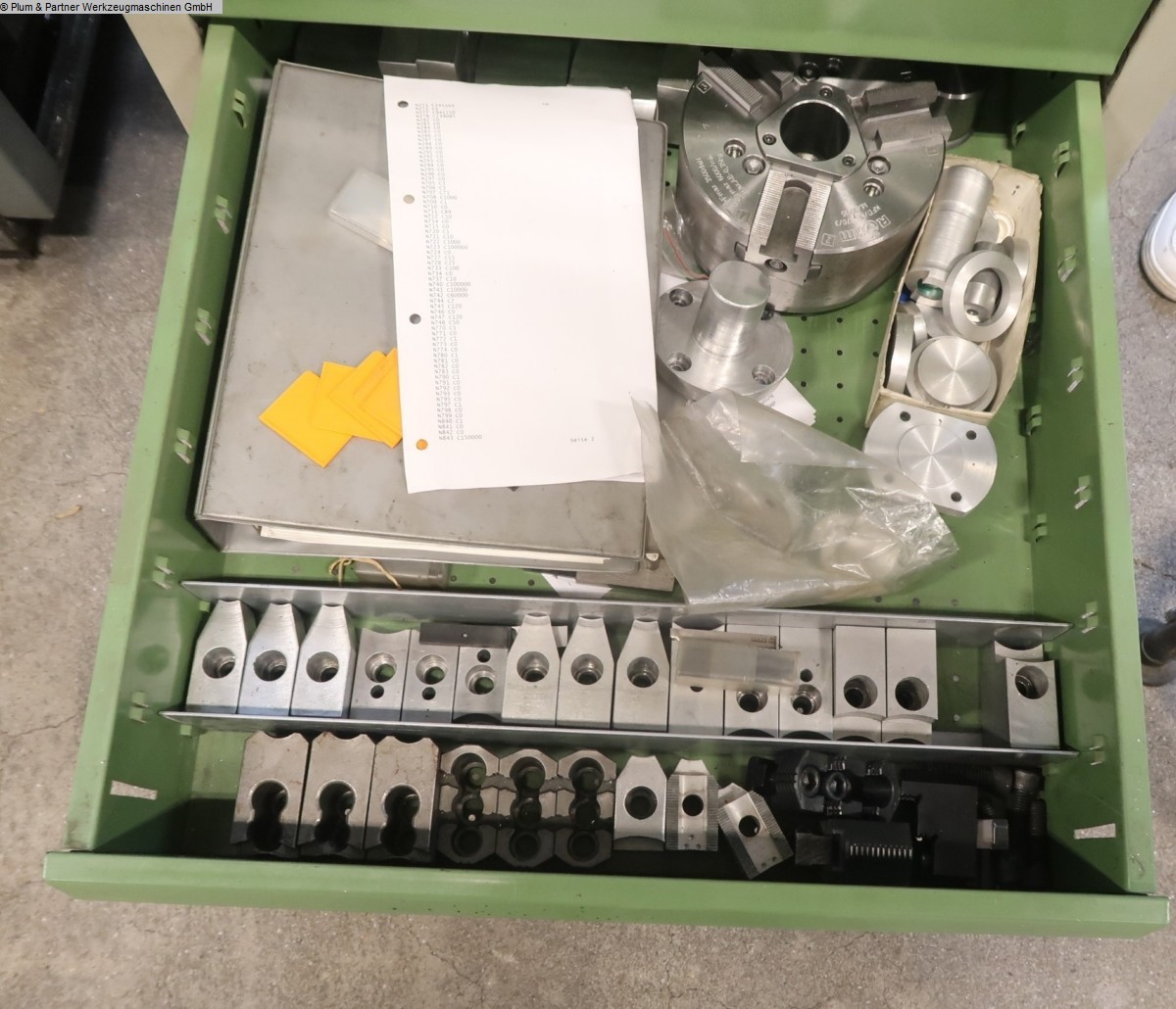

• chuckRöhm KFD/HE 170/3
• Set jaws for the chuck7 x

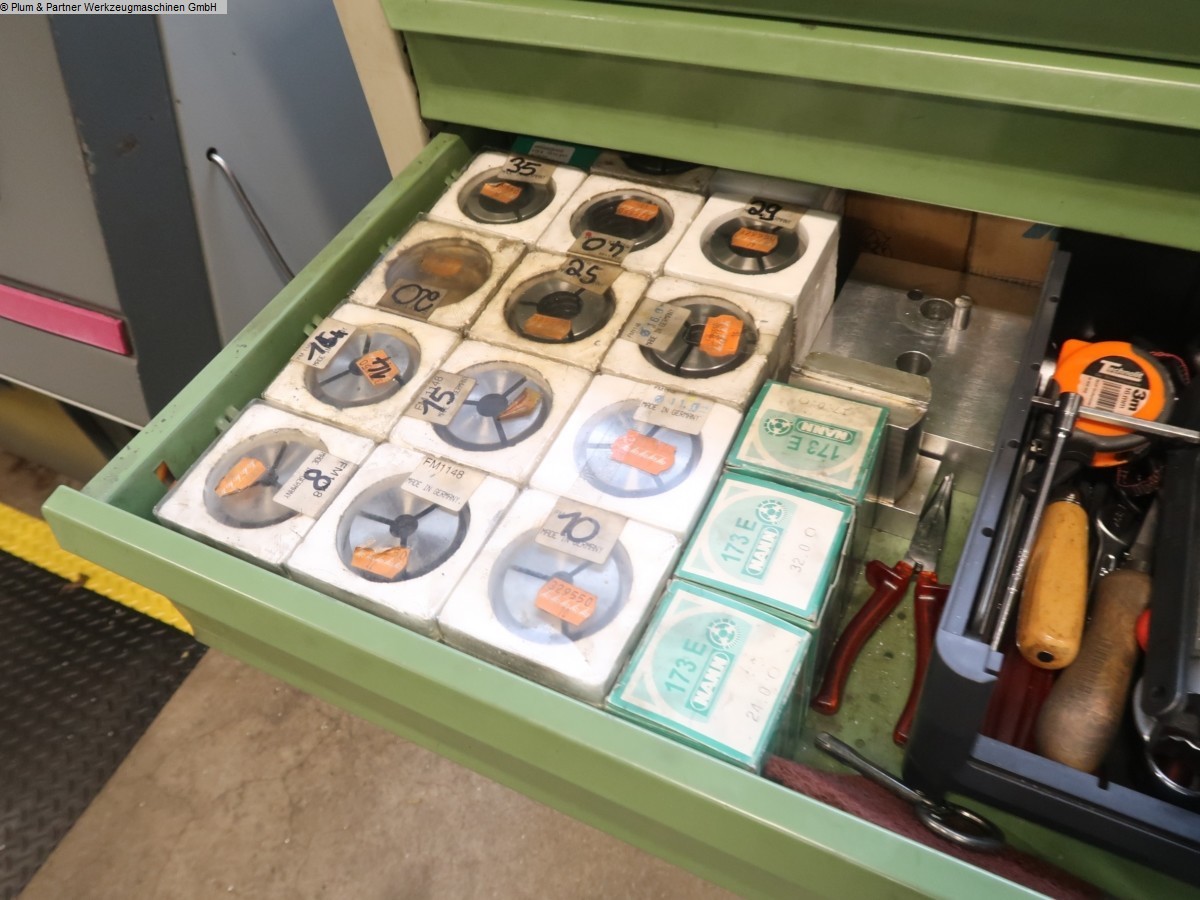

• Collet device with collets

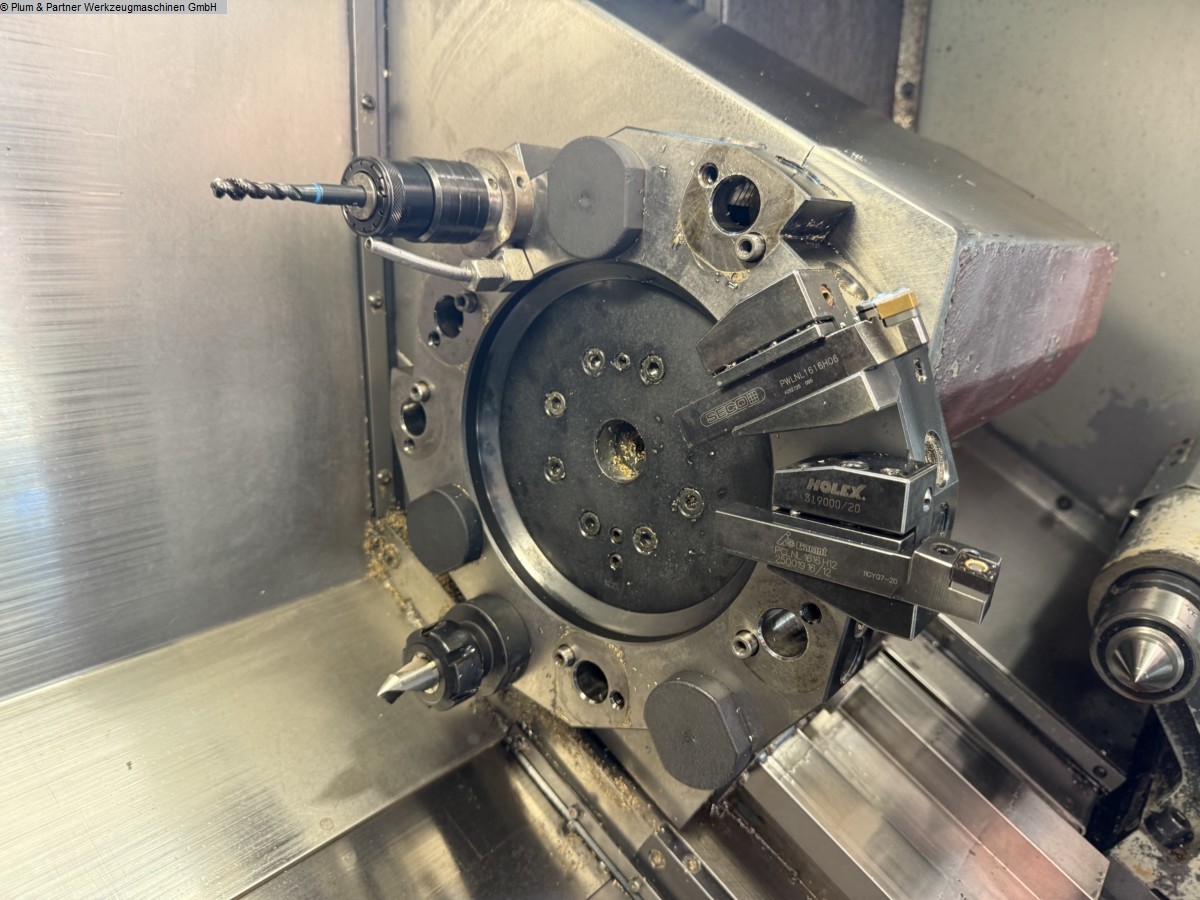

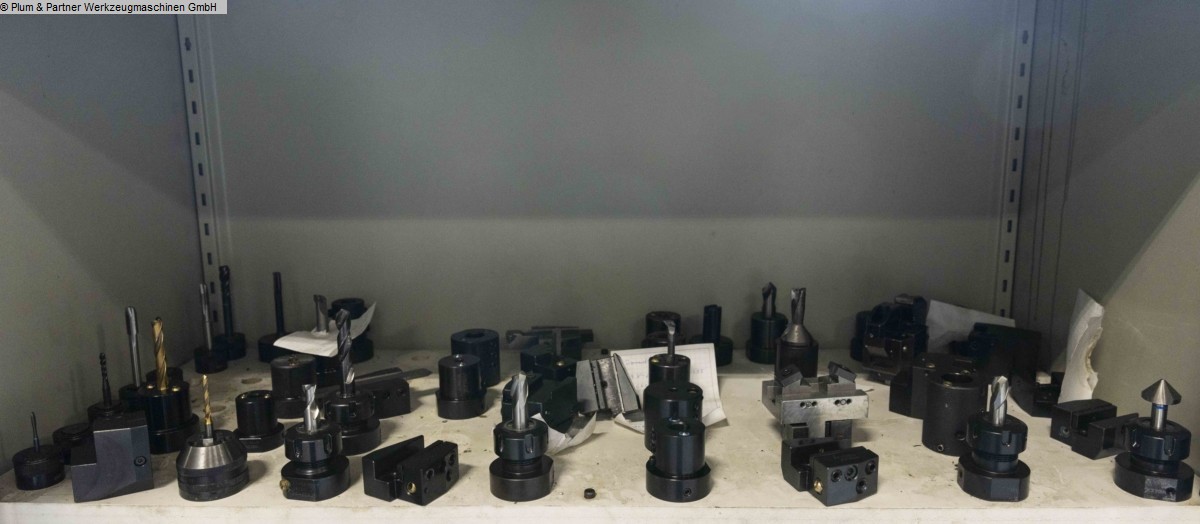

• Turret head with tool holder

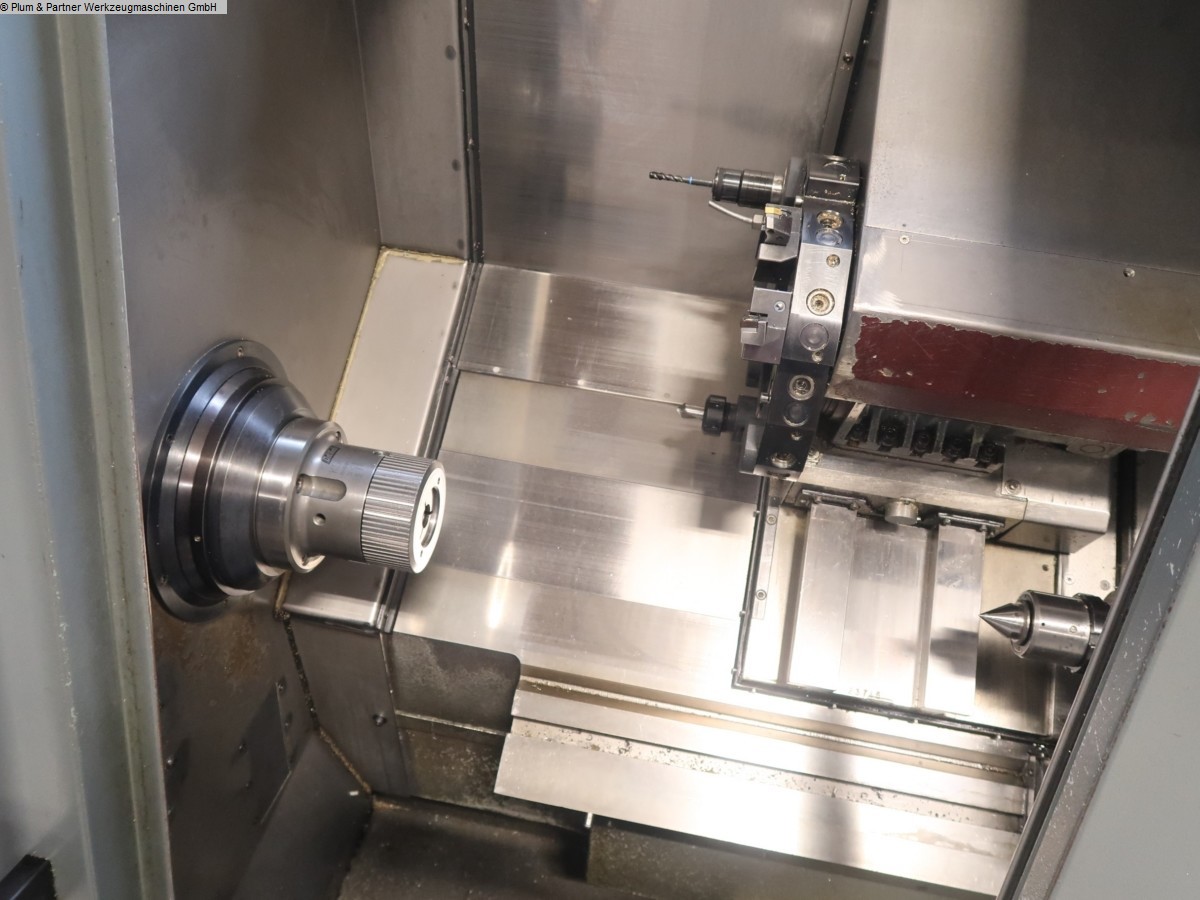

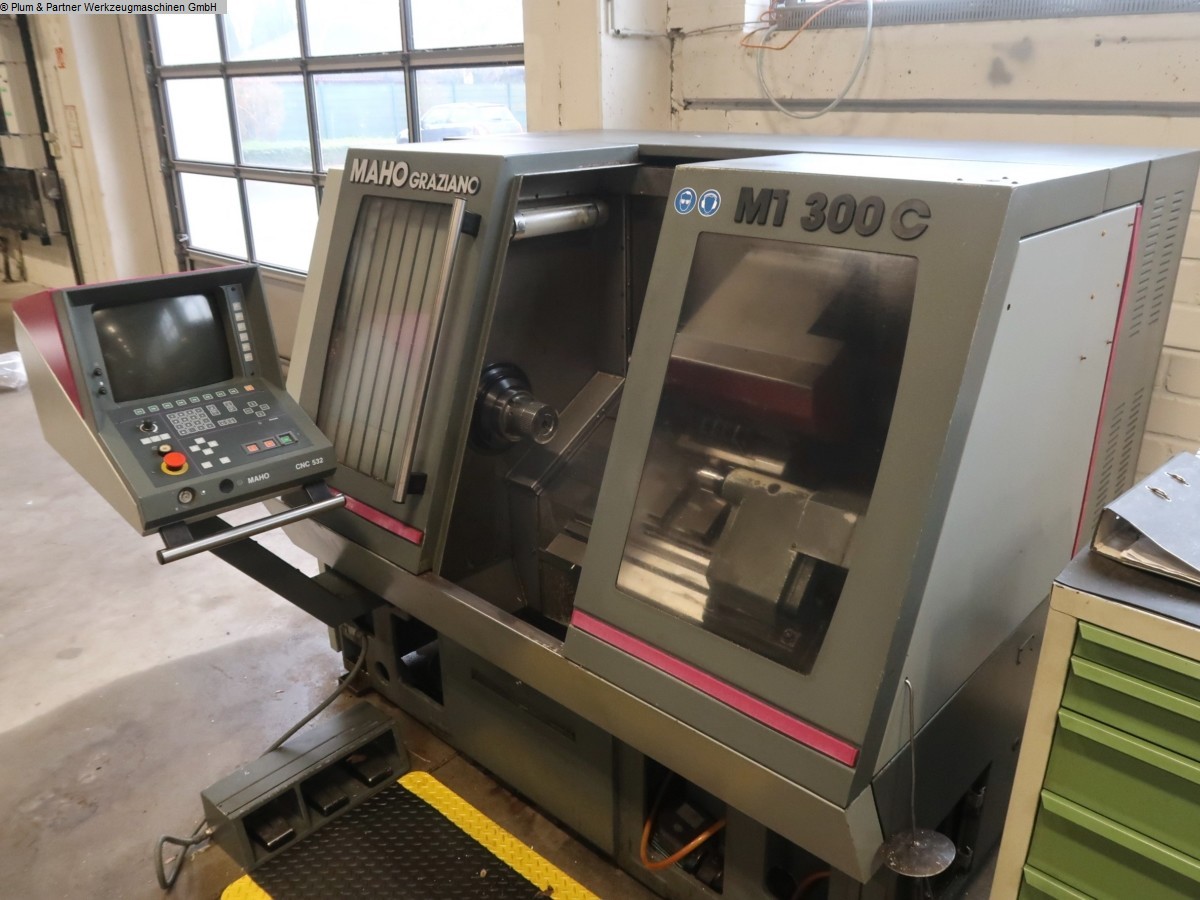

Very well-preserved CNC lathe from individual part production in special machine construction with 12-way turret and extensive range of accessories = complete equipment. Machine dealer with own stock of 1600 m².
