• max. wheel diameter200 mm
• gear width140 mm
• max. module5
• workpiece length - max.400 mm
• external diametermin. 20 mm

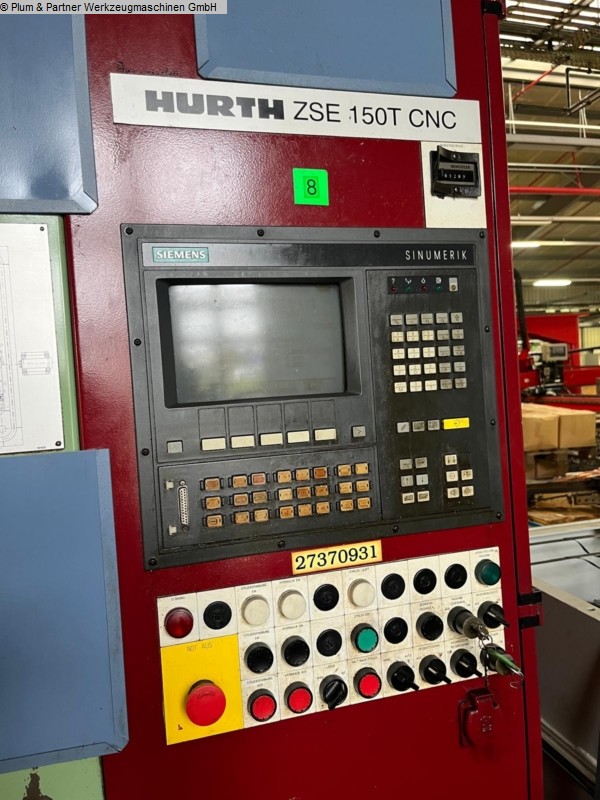

• controlSiemens Sinumerik
• max. tool diameter270 mm
• Max. mould width50,8 mm
• Distance of shaftsmin/max. 120/230 mm
• axial cross angle-18 / -21 °
• shaving wheel spindle turning speedsmax. 400 U/min
• weight of the machine ca.5,5 t
• dimensions of the machine ca.3,6 x 2,6 x 3,3 m

Zubehör

• Electric 400 Volt

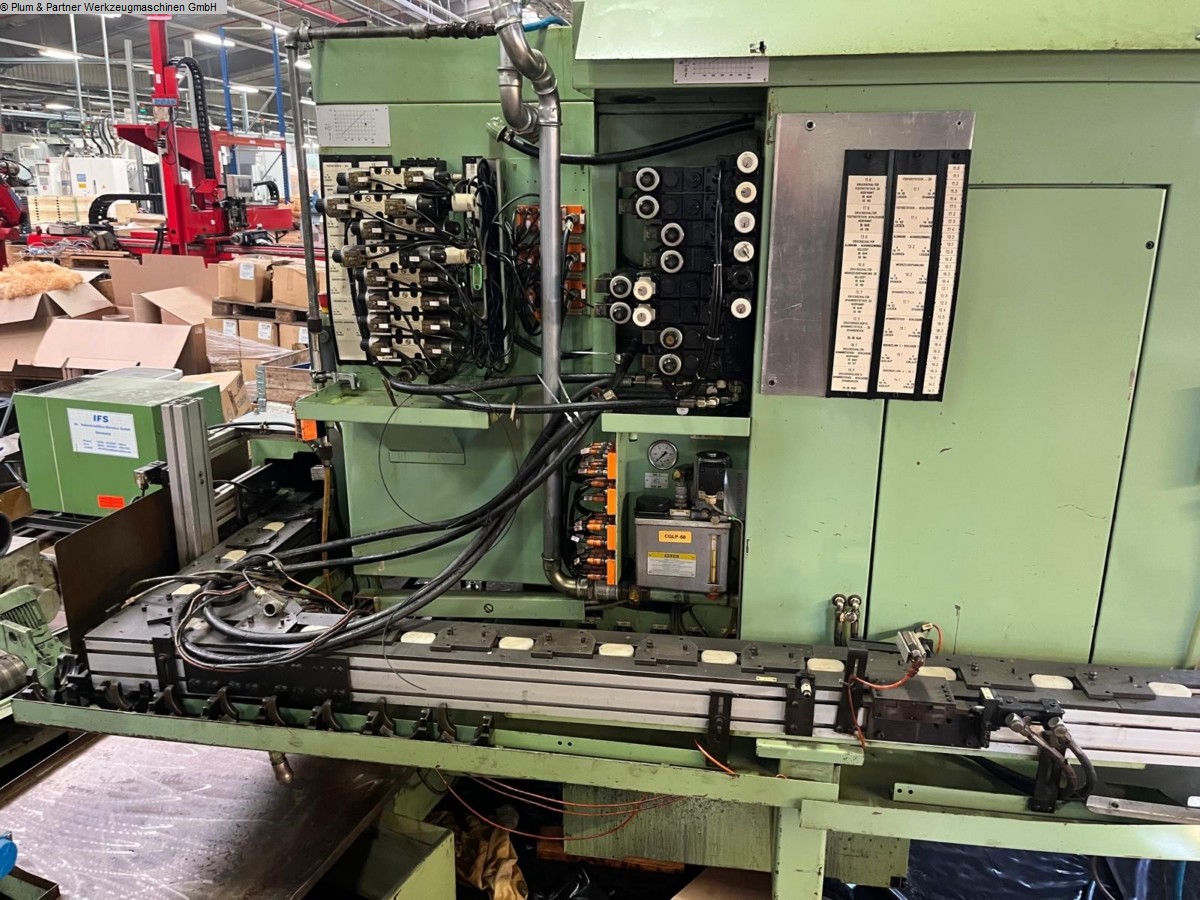

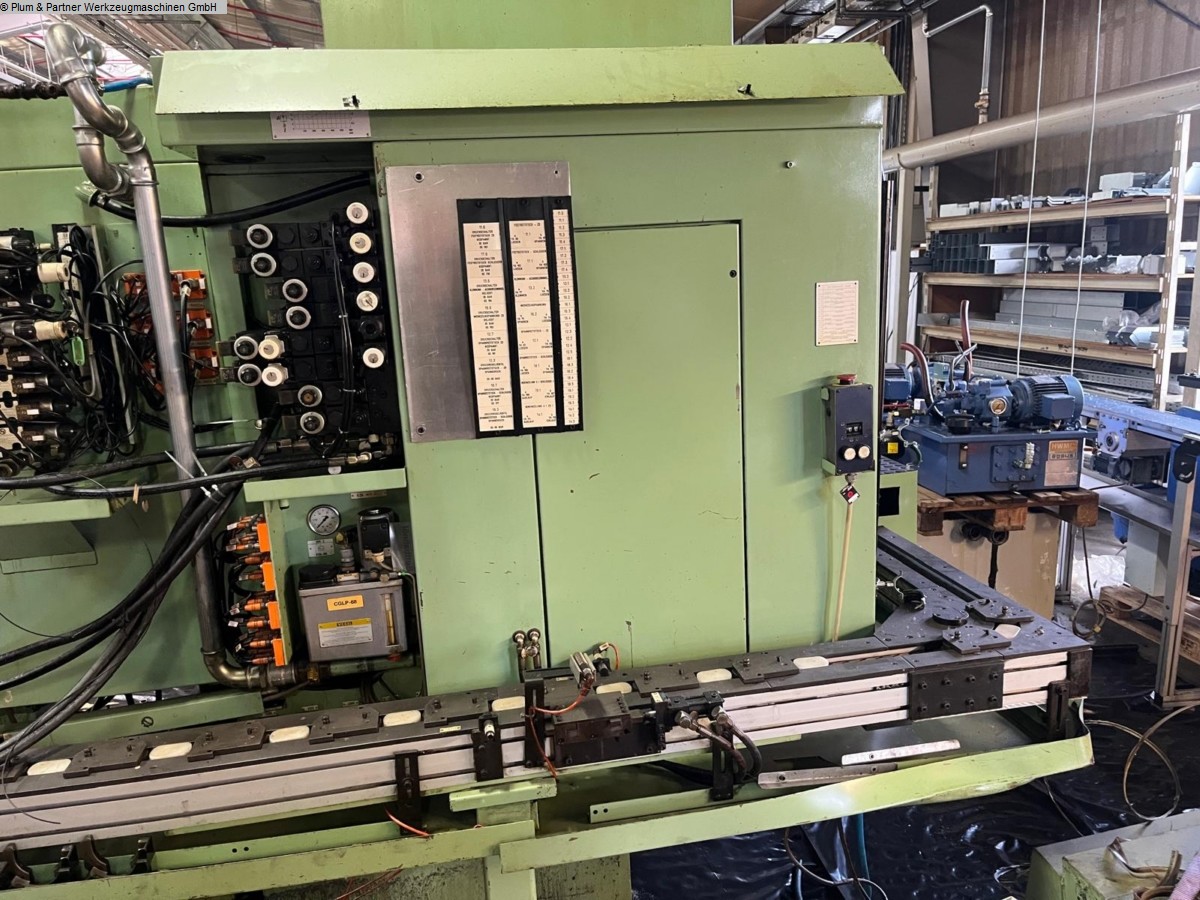

• workpiece magazine

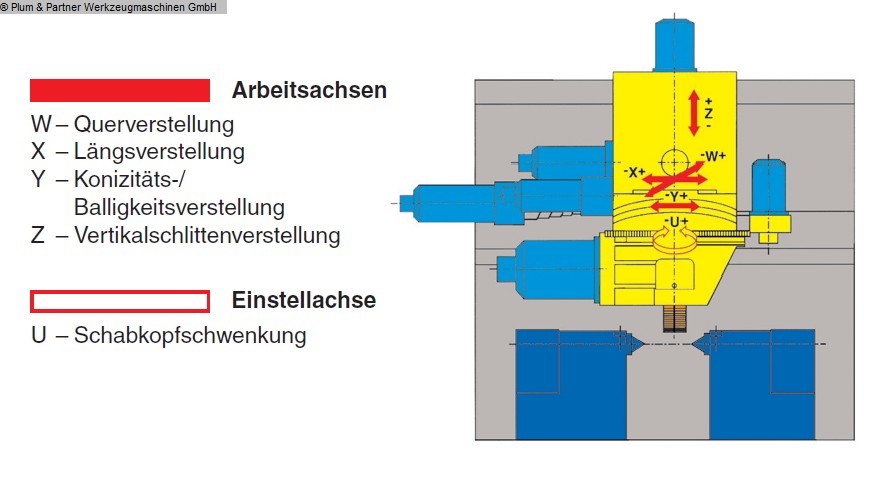

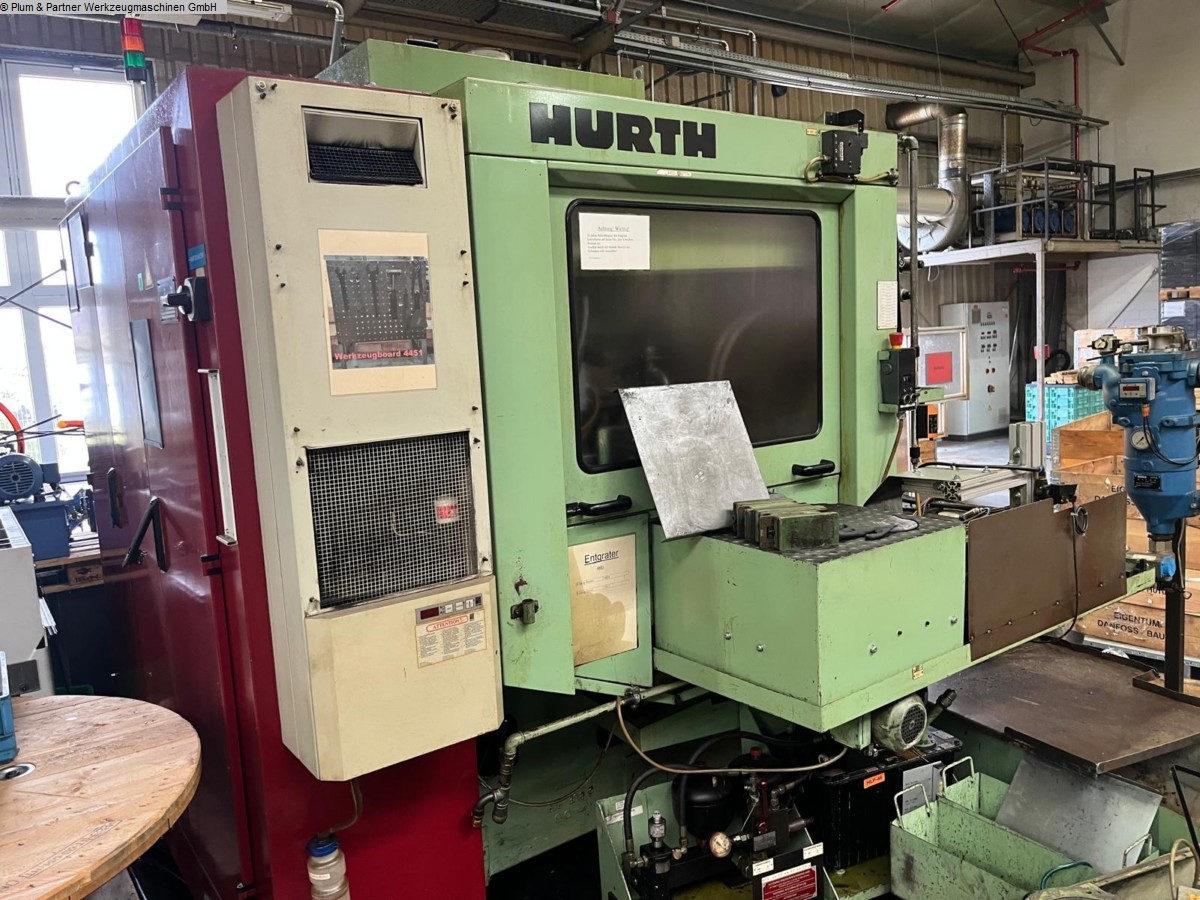

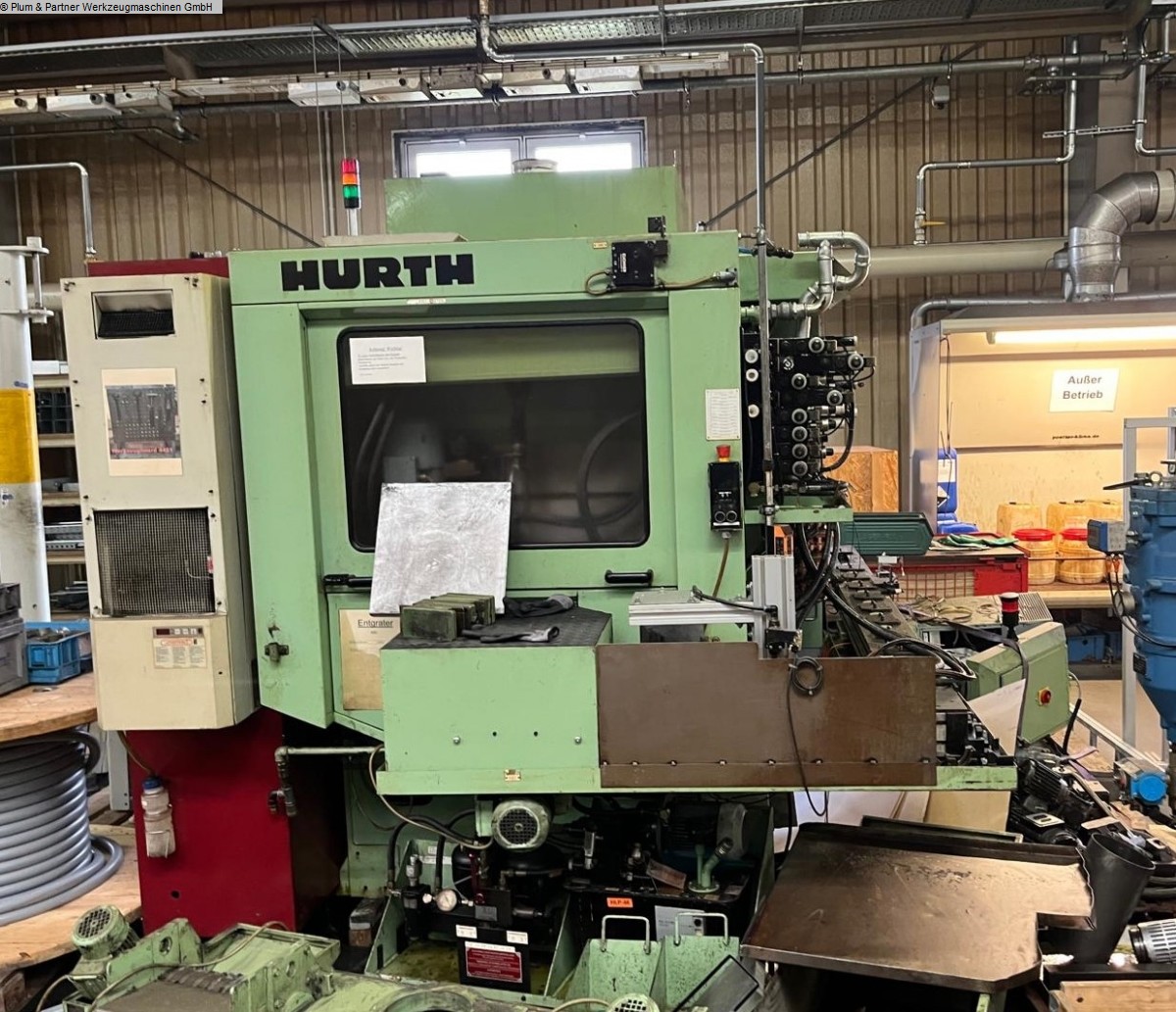

The ZSE 150 scraping machine is used in small and medium series production as a universal scraping machine with a deburring unit on the back. Compact and easily accessible, all operating elements and the work area are easy to reach from the operator's location. A large operator door provides unhindered access to the work area. This enables simple and quick conversion and tool changing processes. This machine is equipped with a pallet ring magazine. Regardless of whether it is for plunge, diagonal or parallel feed or for corrections such as conicity or crowning, all feeds and correction movements are carried out by the scraping head. The simple automatic loading due to the stationary workpiece is also the result of this machine concept and enables the construction of an extremely stable machine bed. This in turn is a basic requirement for achieving the highest gearing qualities. The CNC control controls the axes according to the attached sketch. Machine dealer with own stock of 1600 m².
