Machine details
- Storage ID 1082-12371
- Category Gear Hobbing Machine - Vertical
- Make PFAUTER
- Type PE 150 CNC/2013 ueberholt
- Build year
- Condition ready for operation (used)
- Control CNC
- Location Niedersachsen
- Origin Deutschland
- Delivery terms about 2 - 3 weeks
- Quotation Ex sellers factory + loading costs + export costs + VAT
- Price
Technical details
- max. wheel diameter150 mm
- gear width1 - 200 mm
- max. module4
- min. module1

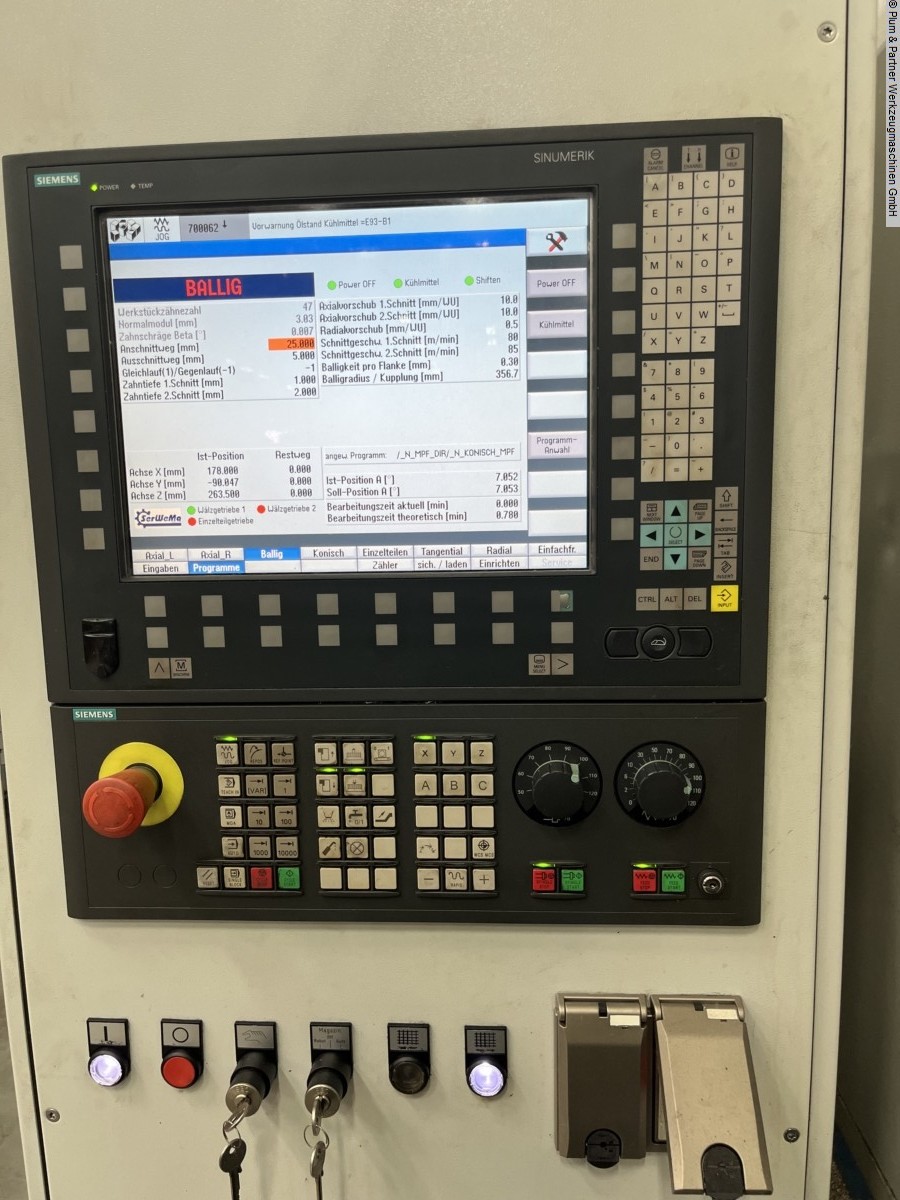

- controlSinumerik 840 D
- table diameter140 mm
- maximum axial offset200 mm
- milling tool taperISO 40
- diameter of hobmax. 130 mm
- cutter length max.220 mm
- milling spindle speeds (infinitely variable)300 - 1200 U/min
- shiftingmax. 170 mm
- milling head -swivable +/-45 °
- feed speeds1 - 1500 mm/min
- rapid travel speed3000 m/min

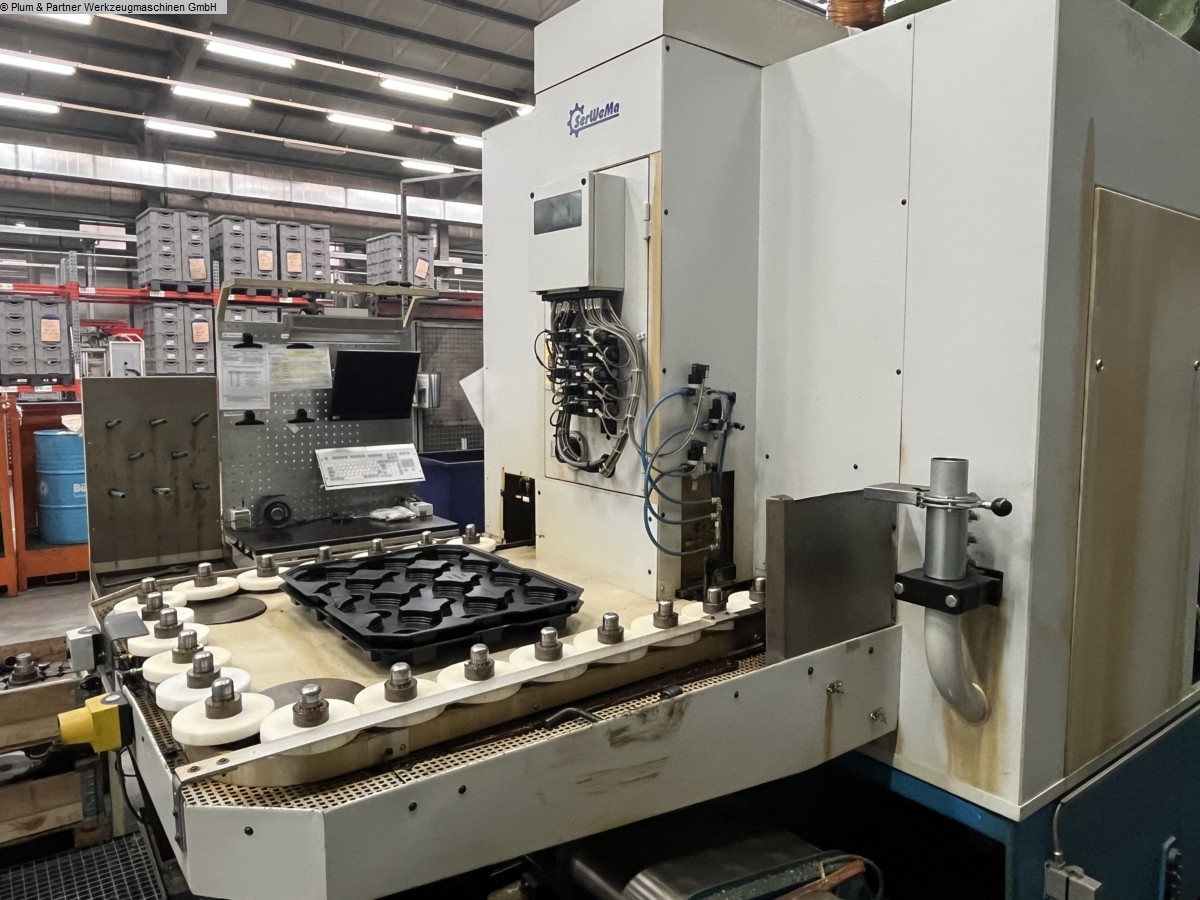

- workpiece magazin Stück
- max. workpiece diameterim Magazin: 150 mm
- total power requirement50 kW
- weight of the machine ca.8,5 t
- dimensions of the machine ca.4,7 x 3,6 x 2,6 m
Zusatz
- Condition: ready for operation
- Video(s) available on our website.
Zubehör
- Electric 400 Volt
Description

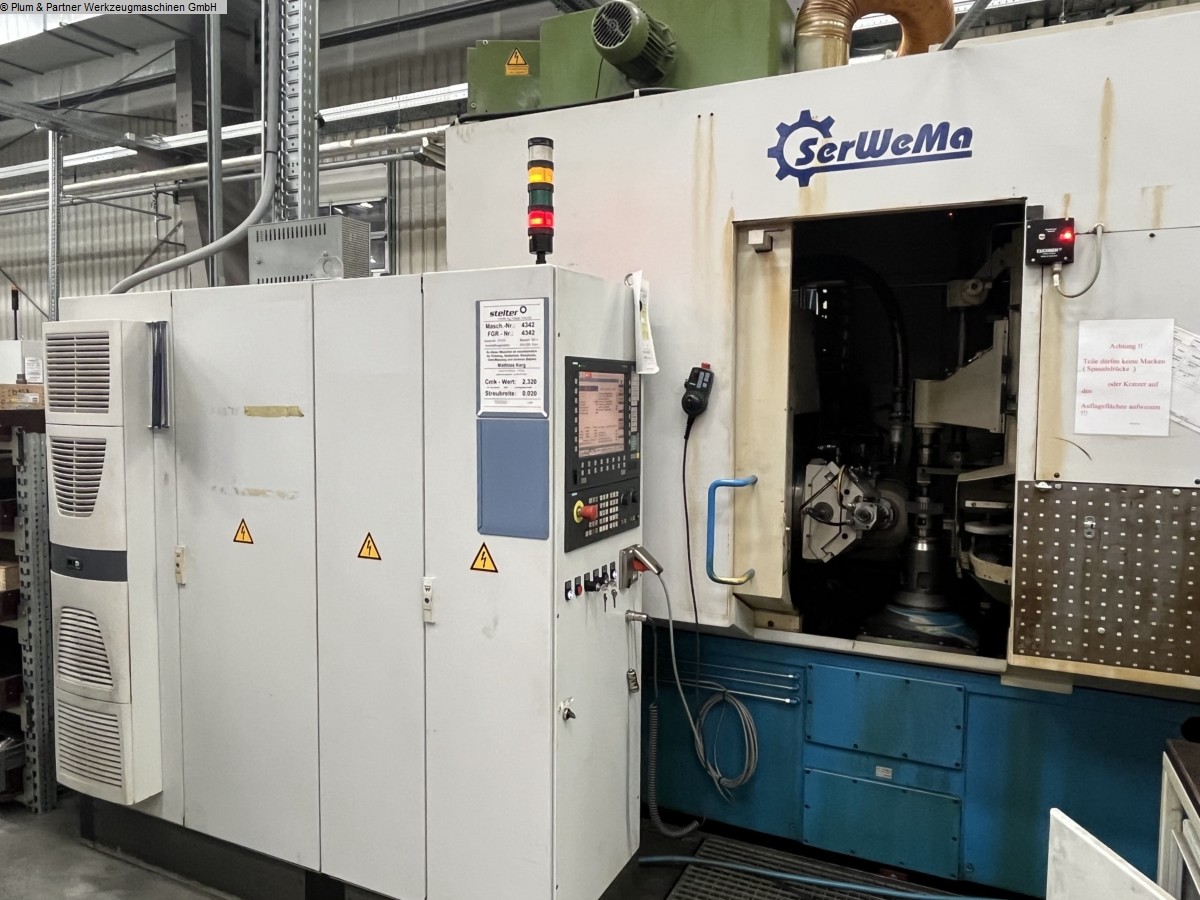

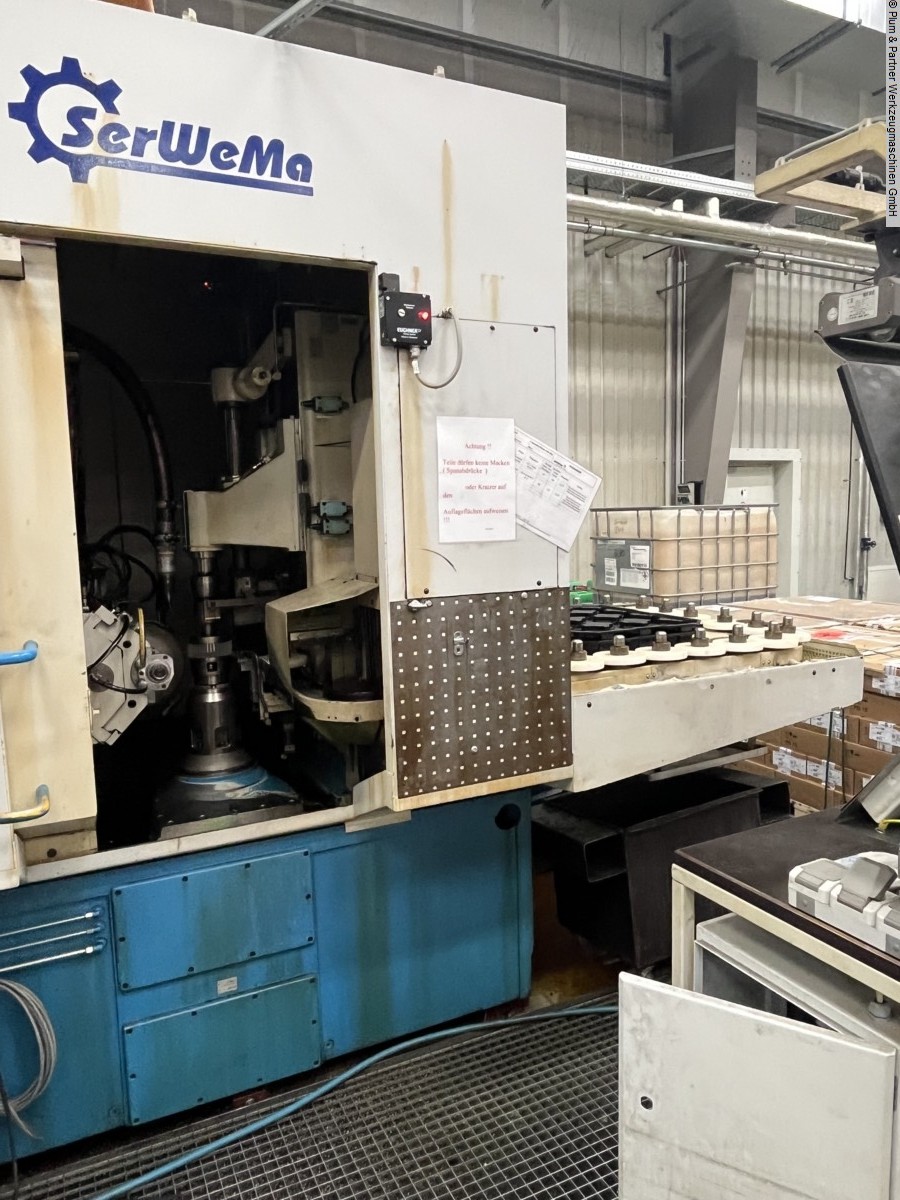

Used gear hobbing machine, Pfauter, new in 1992 completely overhauled in 2023 by the specialist company SerWeMa, with Siemens Sinumerik 840 D control system and workpiece magazine.
