• working width250 mm
• working length250 mm
• work height max.280 mm
• laser capacity in Watt400 Rofin
• travel -z axis10 - 1000 mm/s
• positioning accuracy+/- 0,1 mm
• repeating accuracy+/- 3,5 my
• capacity6,8 kVA
• Required air-pressure6-10 bar
• Type of gasSchutzgas Stickstoff 5 bar
• dimensions of the machine ca.5,9 x 4,2 x 3 m
• range L-W-H2,44 x 1,63 x 2,36 m
• weight2 300 kg

Zusatz

• Video(s) available on our website.3 x

Zubehör

• Electric 400 Volt
• SoftwareConcept Laser

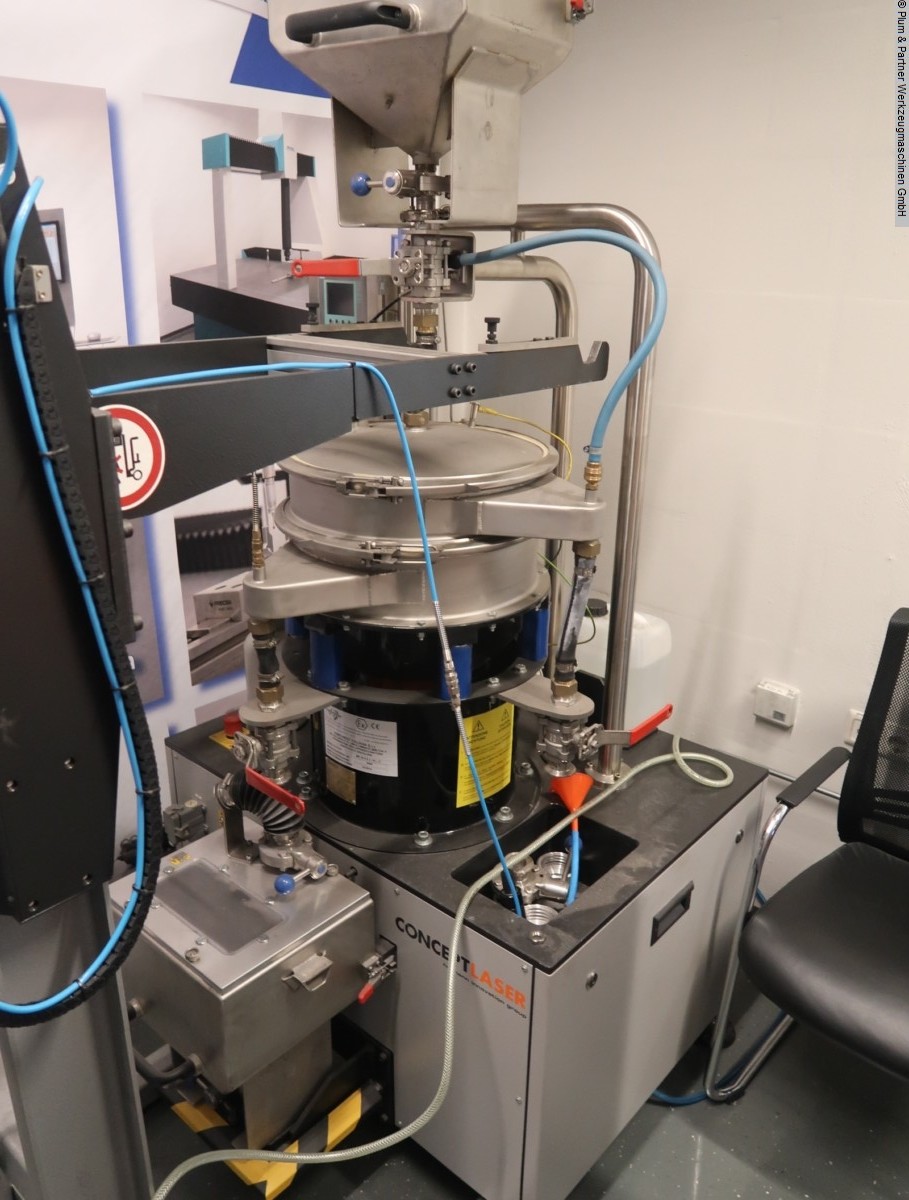

Concept Laser M2 Cusing system for processing reactive and non-reactive powder materials. Design of process chamber, handling station, powder suction according to ATEX Directive II for flammable substances. Materials: steel, stainless steel + aluminum. Supplementing titanium against additional payment possible. Dynamic coating system with 3 different wiper blades. Peripherals and accessories: Rofin laser source - photo 4 Nitrogen generator (in the other room, photo 7) External filter including fan and operating hours counter: 10464 - Photo 8. Storage container for the filter inserts. Transport device with lift for powder loading - photo 9. 6 stainless steel powder charging containers. Pneum. Vibrating sieve for attachment to the powder container. Powder container rack for swap containers, dimensions 1.15 x 0.17 x 1.22 m - photo 10. Orange wet vacuum cleaner - photo 8. Selling due to production change. Vid 1: Machine outside, Vid 2: Machining - created on this machine, Vid 3: Slide show Workpiece creation on this machine + accessories. Machine dealer with own stock of 1600 m².
