• tube diameter60 mm
• wall strength4 mm
• bending radius min.150 mm
• Material Diameter Range Aluminiummax. 60 x 8 mm
• high-grade steel tube max.max. 60 x 3 mm
• foll material (circle)max. 45 mm
• rectanglemax. 50 x 3 mm
• arbor length1500 - 6000 mm
• total power requirement2 kW
• weight of the machine ca.210 kg
• dimensions of the machine ca.0,6 x 0,5 x 0,95 m

Zubehör

• gears in oil
• Electric 380 Volt

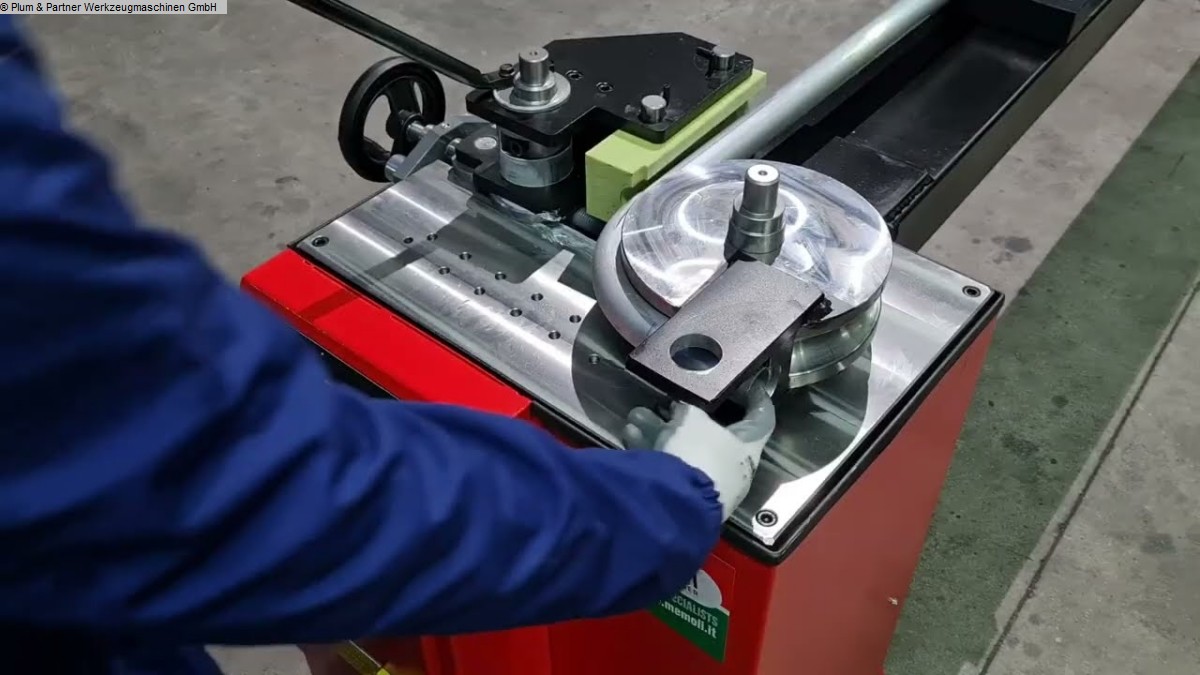

The ETM series is equipped with state of the art technologies meant to bend without mandrel tubes and profiles, and capable of bending both in right and left direction. It allows to bend tubes with arange diameter from 8 mm up to 168 mm and it can make curves over 180° with topfinish quality for a minimum bending radius of 3 x the tube diameter. Every ETM machine is manufactured from single welded steel block and the toolings are machined from solid steel. The system of counter formers is specifically designed to reduce mechanical effort and to make the bending operation faster than other brands machines of the same category, thus granting a very good finishing even when bending very thin wall thicknesses. Thanks to its new software technology called “Digital Bend Programming Touch Screen”, this machine is extremely easy to use: this software in fact was specifically studied for our machines and enables to select up to 49 programs each of them with a 8-stop bending angle - sequenceand to automatically adjust the material springiness (springback). Moreover, it allows to save and store one’s projects as repeatable programs. The same machine is also available with stepless bending speed (inverter) and with mandrel bending device. Bending tools for different pipe diameters on request.
