Datasheet

Machine details

  • Storage ID 1082-08664
  • Category Rapid Radial Drilling Machine
  • Make GILLARDON
  • Type GSR 32 VE-SL
  • Build year neu
  • Condition new
  • Control conventional
  • Location ex factory
  • Origin Deutschland
  • Delivery terms by request
  • Quotation Ex works + Packing + VAT
  • Price

Technical details

  • bore capacity in steel (diameter)32 mm
  • arm length1220 mm
  • workpiece height max.600 mm
  • bore capacity in cast iron40 mm
  • short taperMK 4
  • throat min.210 mm
  • table surface area1200 x 510 mm
  • distance spindle /table380 - 680 mm
  • distance spindle/base plate1075- 1375 mm mm
  • quill stroke200 mm
  • spindle feeds:0,08-0,1-0,2-0,3
  • spindle turning speed - stepless80 - 2000 U/min
  • dimensions1,2 x 1,71 x 2,5 m
  • total power requirement2/2,4 kW
  • weight of the machine ca.1,7 t

Zusatz

  • Video available

Zubehör

  • Electric 400 Volt
  • Thread cutting device
  • Stepless turning speed regulation
  • Protection guard plexi
  • Electromagnetic feed engagement
  • Automatic clamping
  • Right- left turning
  • Cooling equipment

Description

Machine dealer with own stock of 1600 m².

Documents & Videos

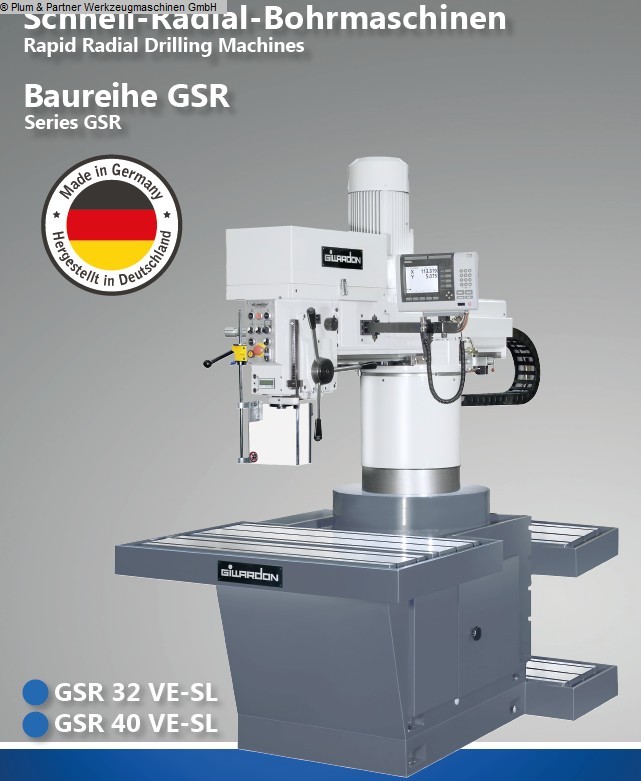

#1082-08664 - Rapid Radial Drilling Machine GILLARDON GSR 32 VE-SL
