Datasheet

Machine details

  • Storage ID 1082-08662
  • Category Pillar Drilling Machine
  • Make GILLARDON
  • Type GB 32 VE
  • Build year neu
  • Condition new
  • Control conventional
  • Location ex factory
  • Origin Germany
  • Delivery terms about 6 week
  • Quotation Ex works + Packing + VAT
  • Price

Technical details

  • bore capacity in steel (diameter)32 mm
  • throat310 mm
  • bore stroke175 mm
  • short taperMK 4
  • feeds0,1+0,2+0,3+0,4 mm/U
  • table-size570 x 475 mm
  • spindle turning speed - stepless60 - 1600 U/min
  • column diameter130 mm
  • distance between table/spindlemax. 790 mm
  • threading ST 60/GG 20 max.M 27 / M 36
  • drilling capacity steel/cast iron40 mm
  • distance spindle/base plate1210 mm
  • total power requirement1,1/1,8 kW
  • weight of the machine ca.450 kg
  • range L-W-H960 x 650 x 1950 mm

kein Zusatz angegeben

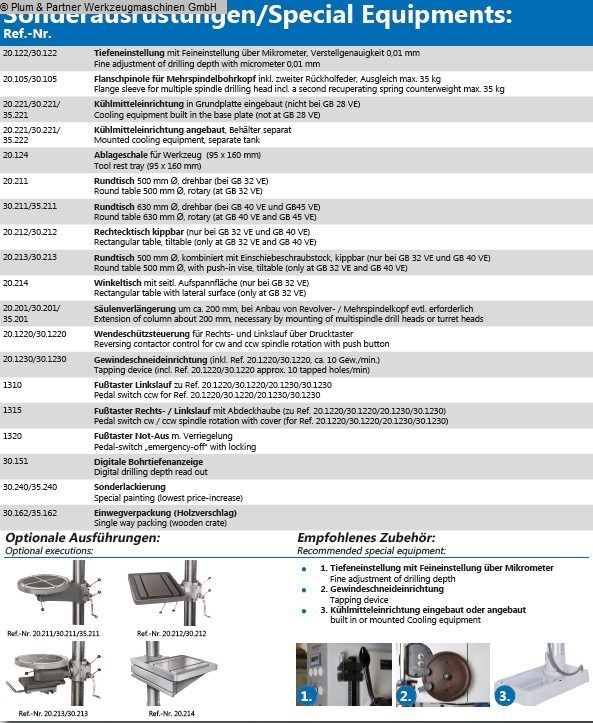

Zubehör

  • Electric 400 Volt
  • Thread cutting device
  • Stepless turning speed regulation
  • electromagnetic feed
  • Cooling pump in machine base

Description

Pillar drill with stepless speed control, 2-stage motor, autom. Spindle feed, electromagnetic feed engagement, tapping device, tachometer, prepared for coolant device. Gillardon = German branded product. Machine dealer with own stock of 1600 m².

Documents & Videos

#1082-08662 - Pillar Drilling Machine GILLARDON GB 32 VE
