• bore capacity in steel (diameter)25 mm
• throat255 mm
• bore stroke135 mm
• spindle turning speed range8, von 105-2900 U/min
• table-size500 x 350 mm
• column diameter100 mm
• spindle taperMK 3
• total power requirement0,65 / 0,9 kW
• weight of the machine ca.190 kg
• dimensions of the machine ca.0,5 x 0,5 x 1,7 m

Zubehör

• Electric 380 Volt
• Drill chuck

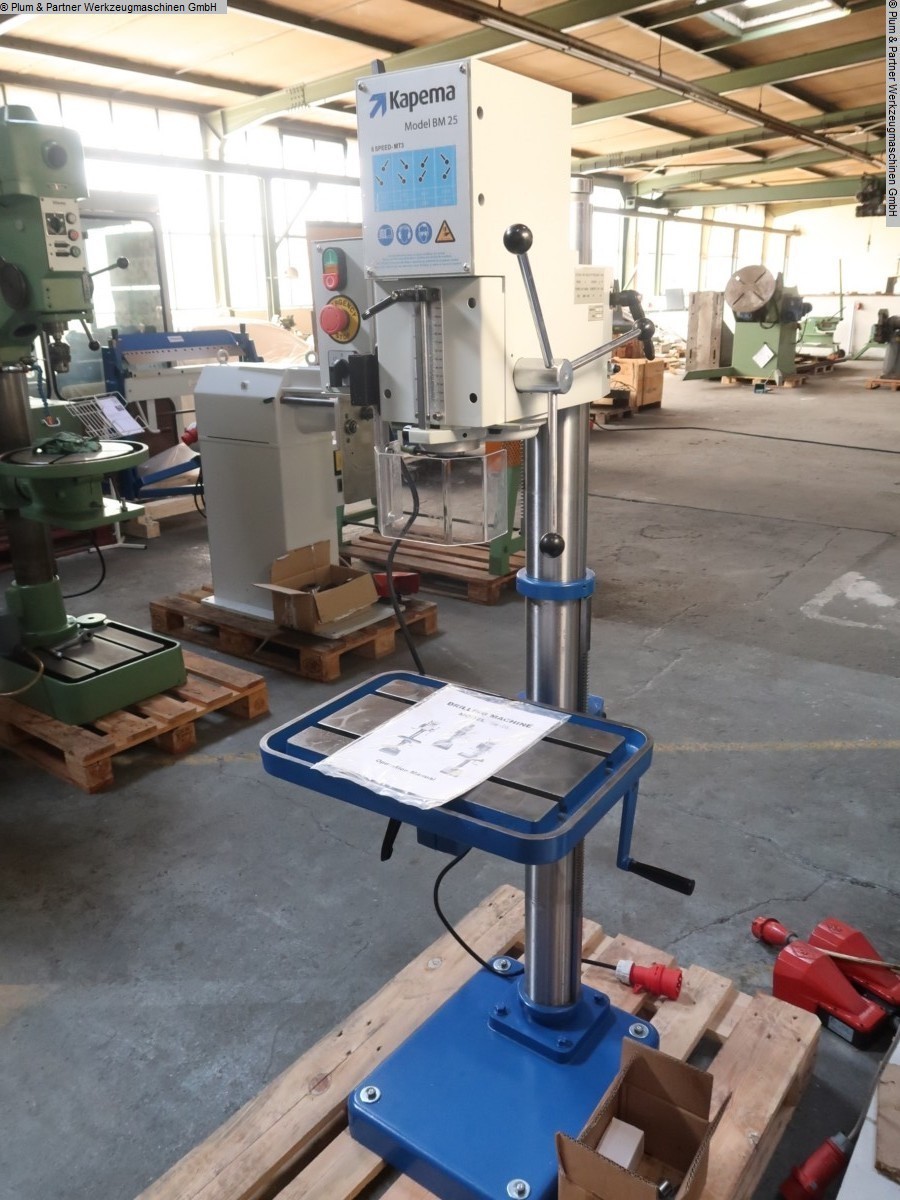

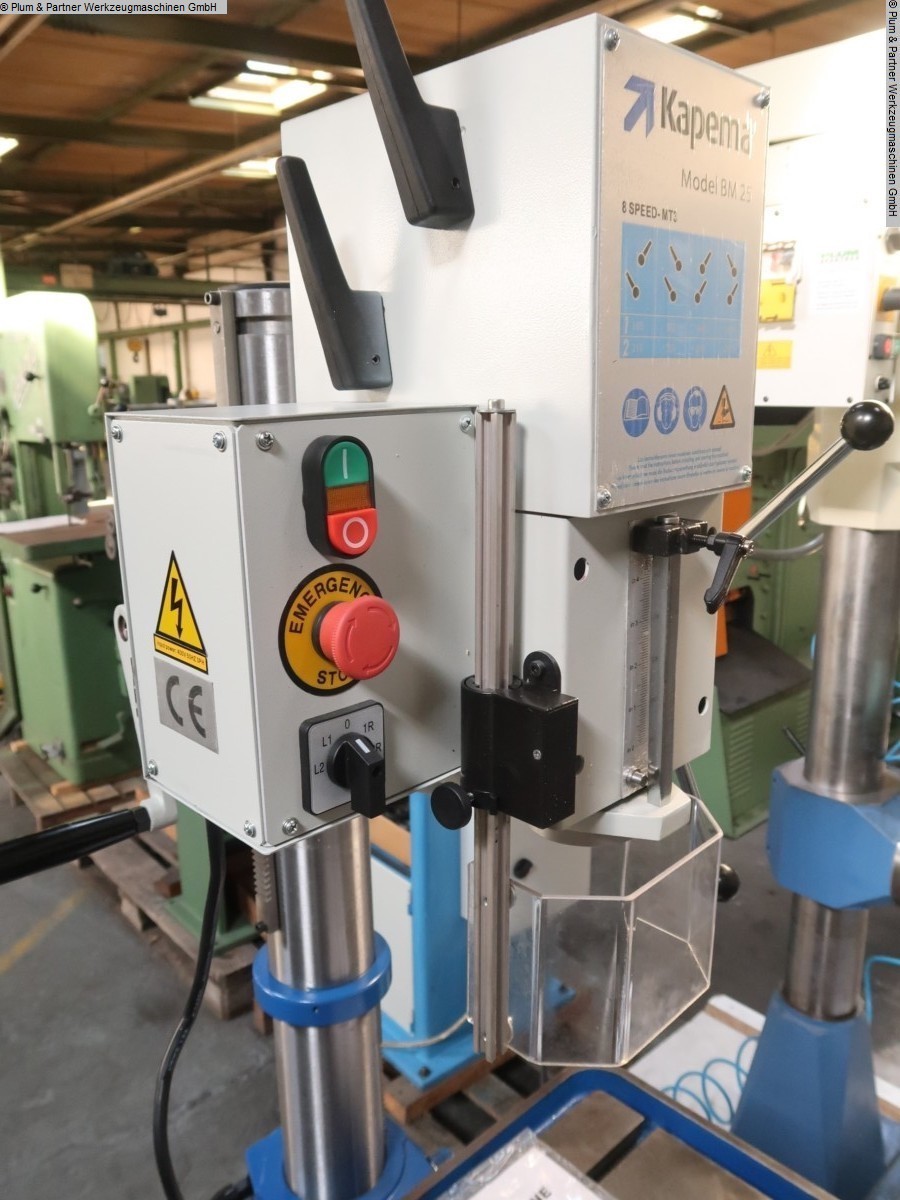

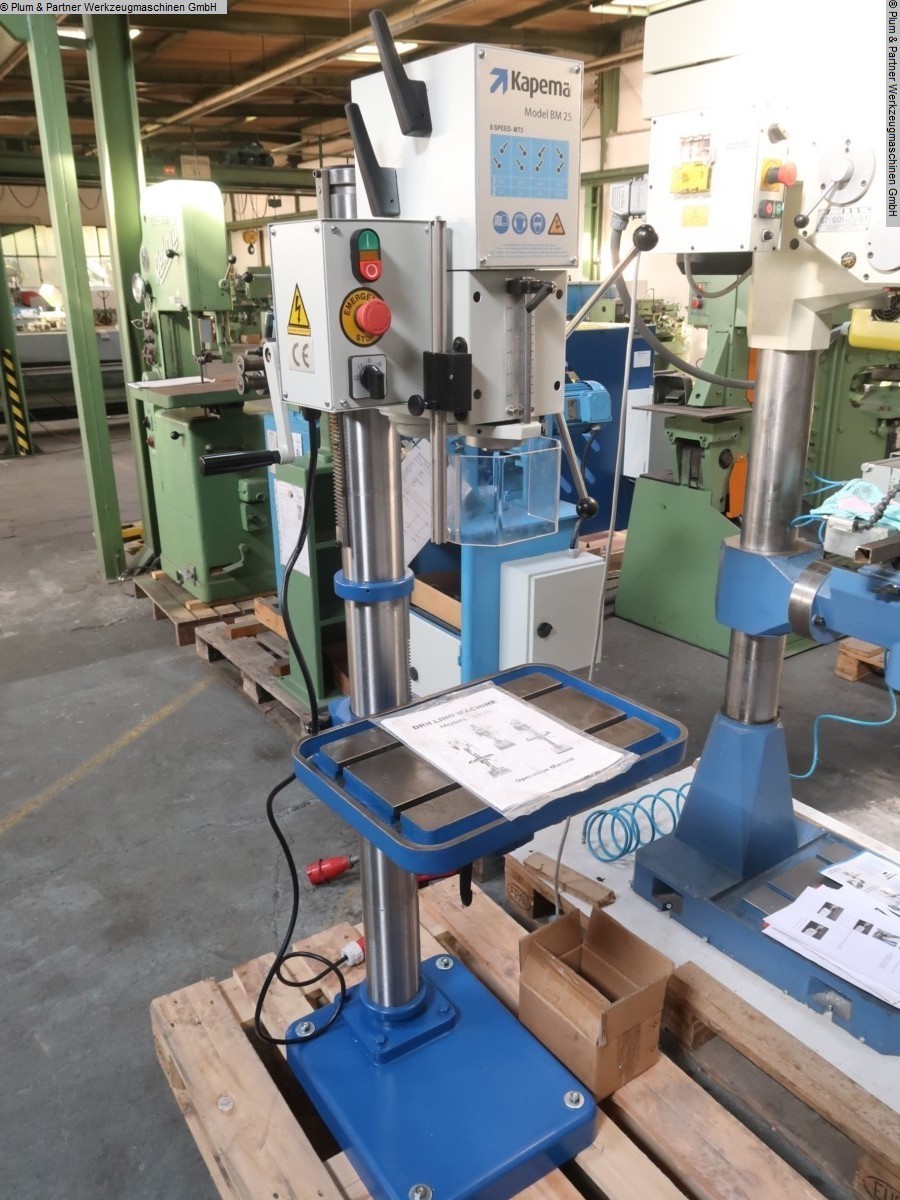

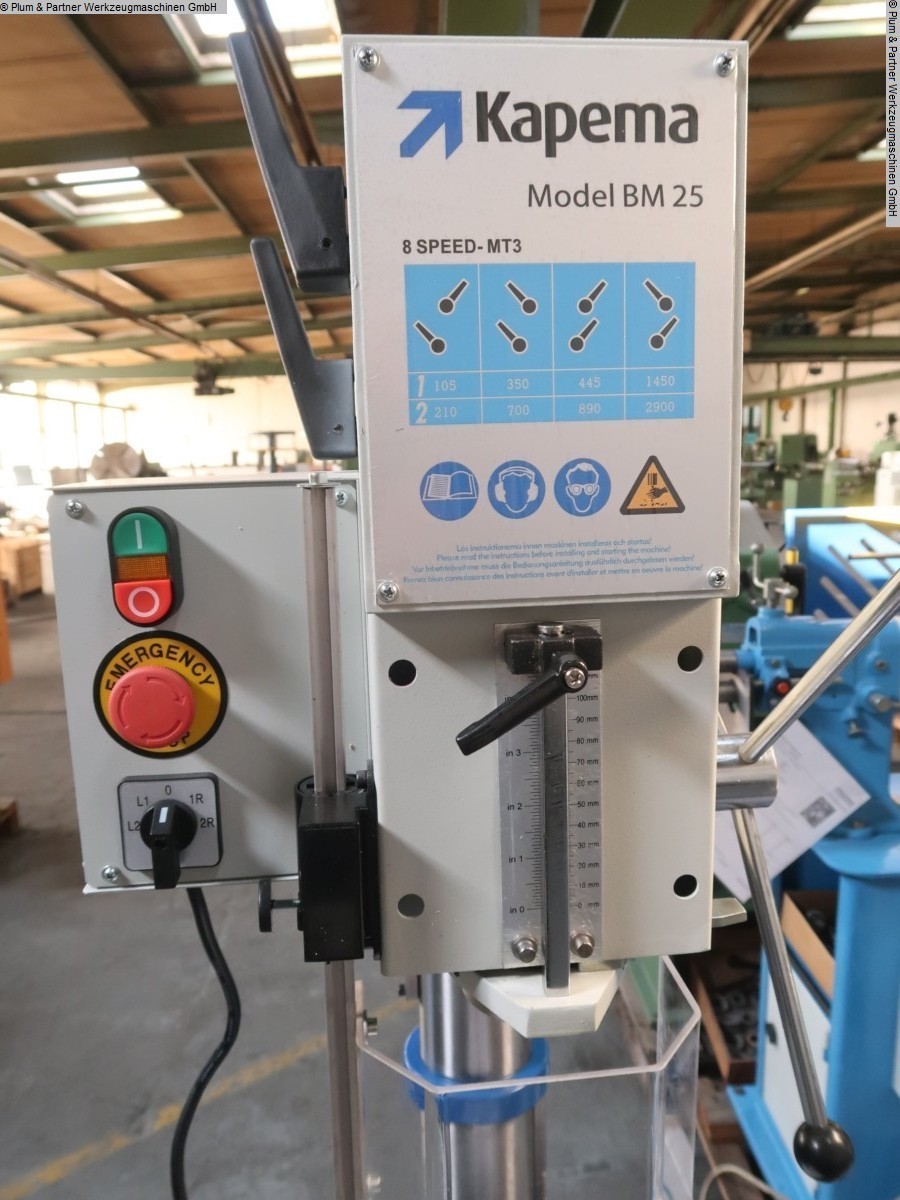

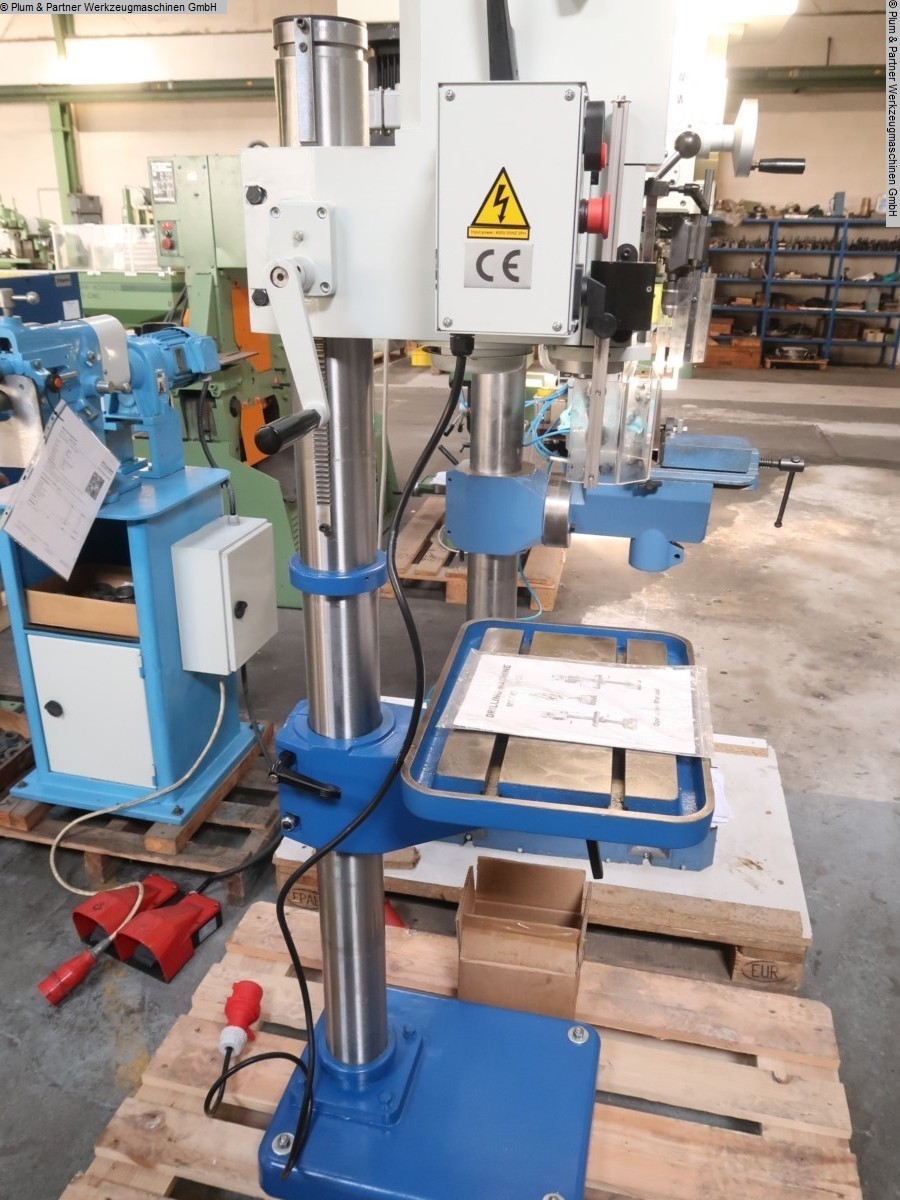

Unused exhibition machine at a special price: New gear machine, 2-stage right/left rotation, height-adjustable drilling head, Construction principle "Arboga - Sweden", maintenance-free gearbox with helical teeth Wheels, drill head and table are adjustable 360 degrees around the column,chip protection with electr. Switch, drilling depth indicator. This is a exhibition machine at a special price, so we are selling it without any warranty. Machine dealer with own stock of 1600 m².
