• filling capacity600 kg
• max. workpiece height1100 x 200 mm
• workpiece weight total 350 kg
• filling amount350 + 250 kg
• max. workpiece weight20 kg / Stck
• turning speeds21,9 U/min
• Colourblau 5015 RAL
• 01355 x 280 mm
• total power requirement3 kW
• weight of the machine ca.1660 kg
• dimensions of the machine ca.2,98 x 1,05 x 1,44 m

Zubehör

• Electric 400 Volt

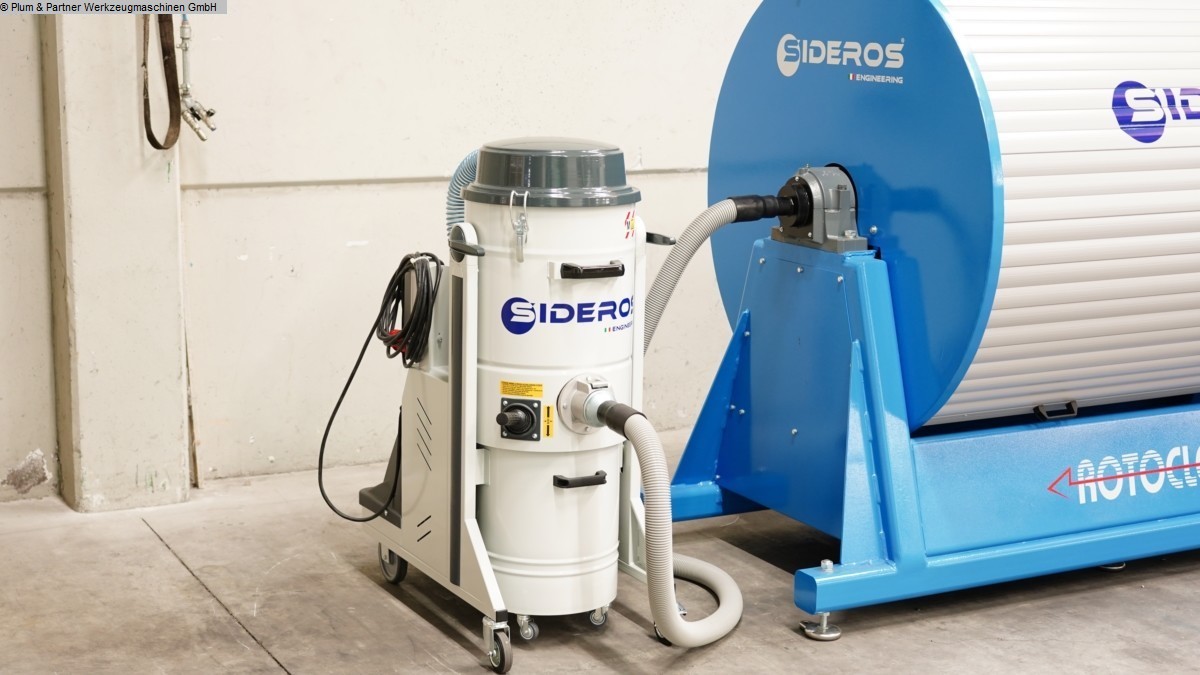

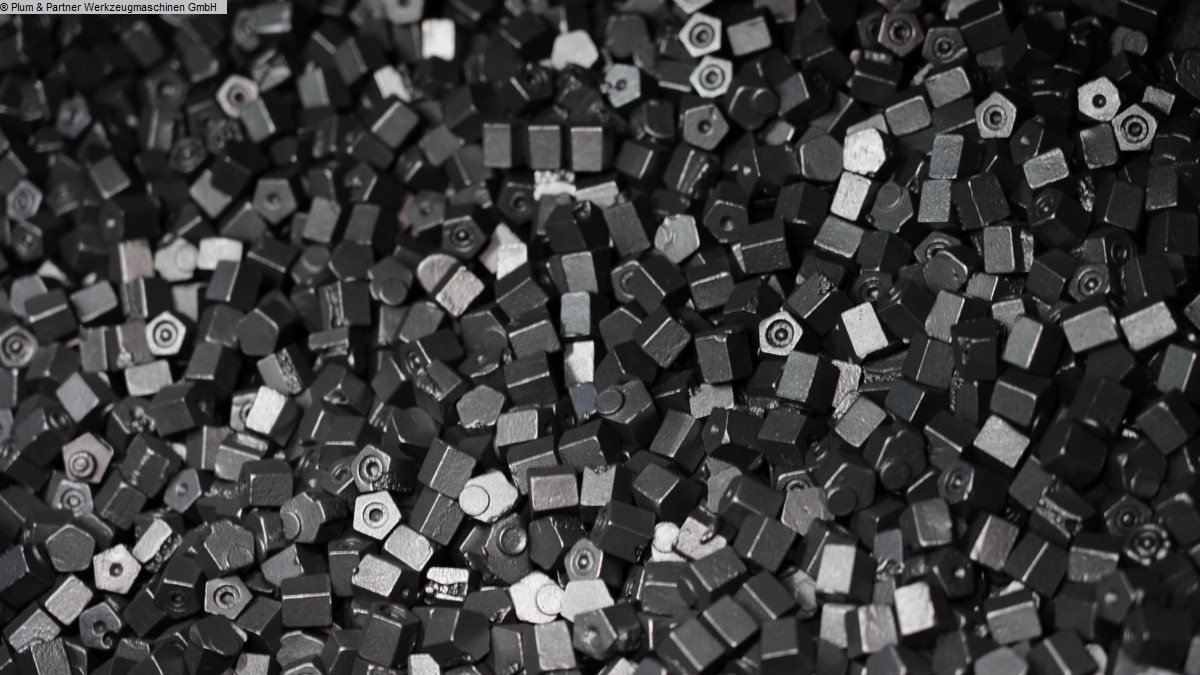

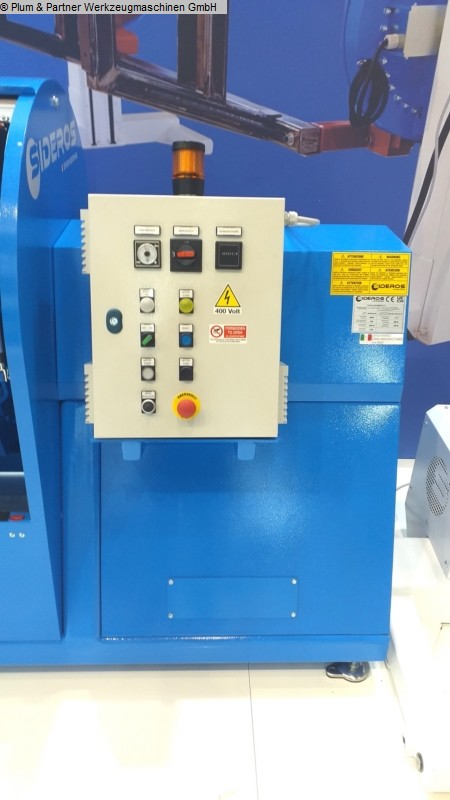

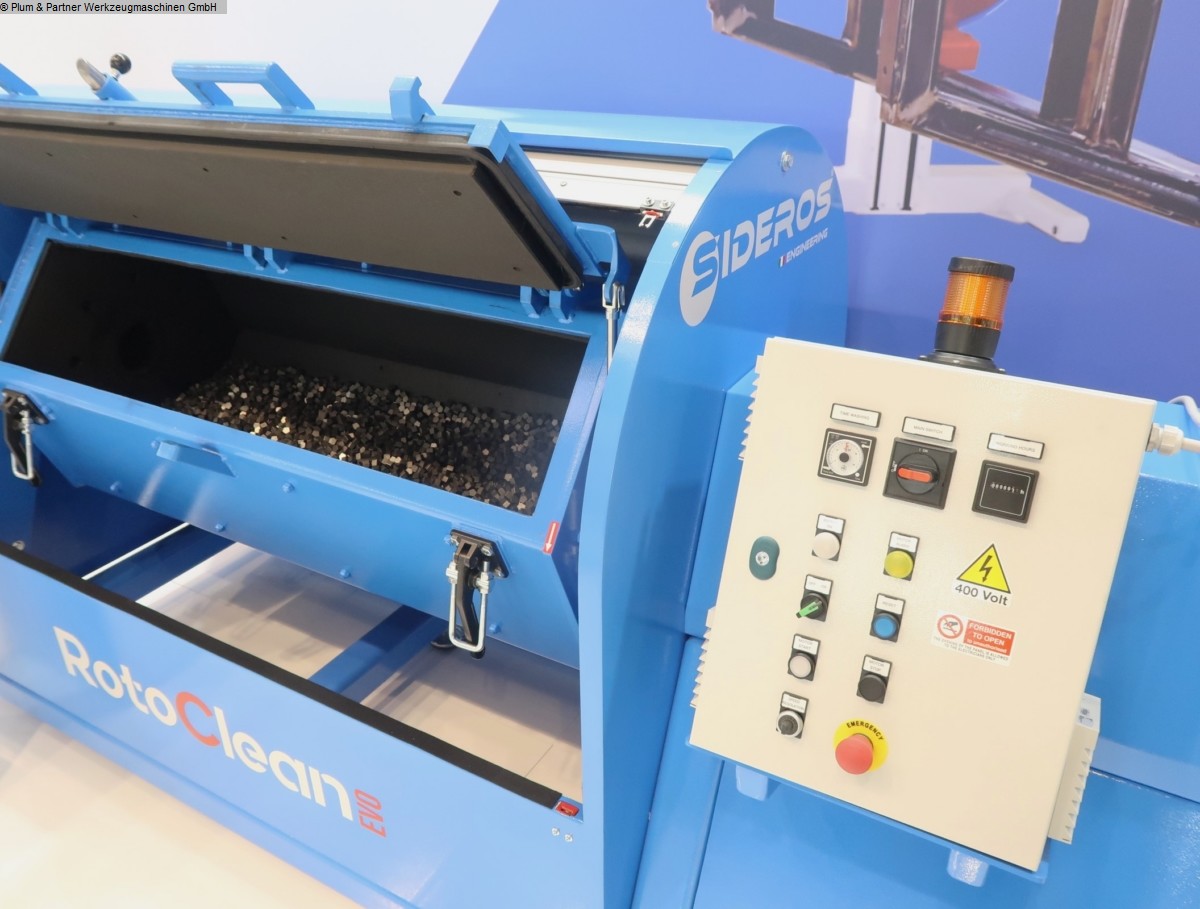

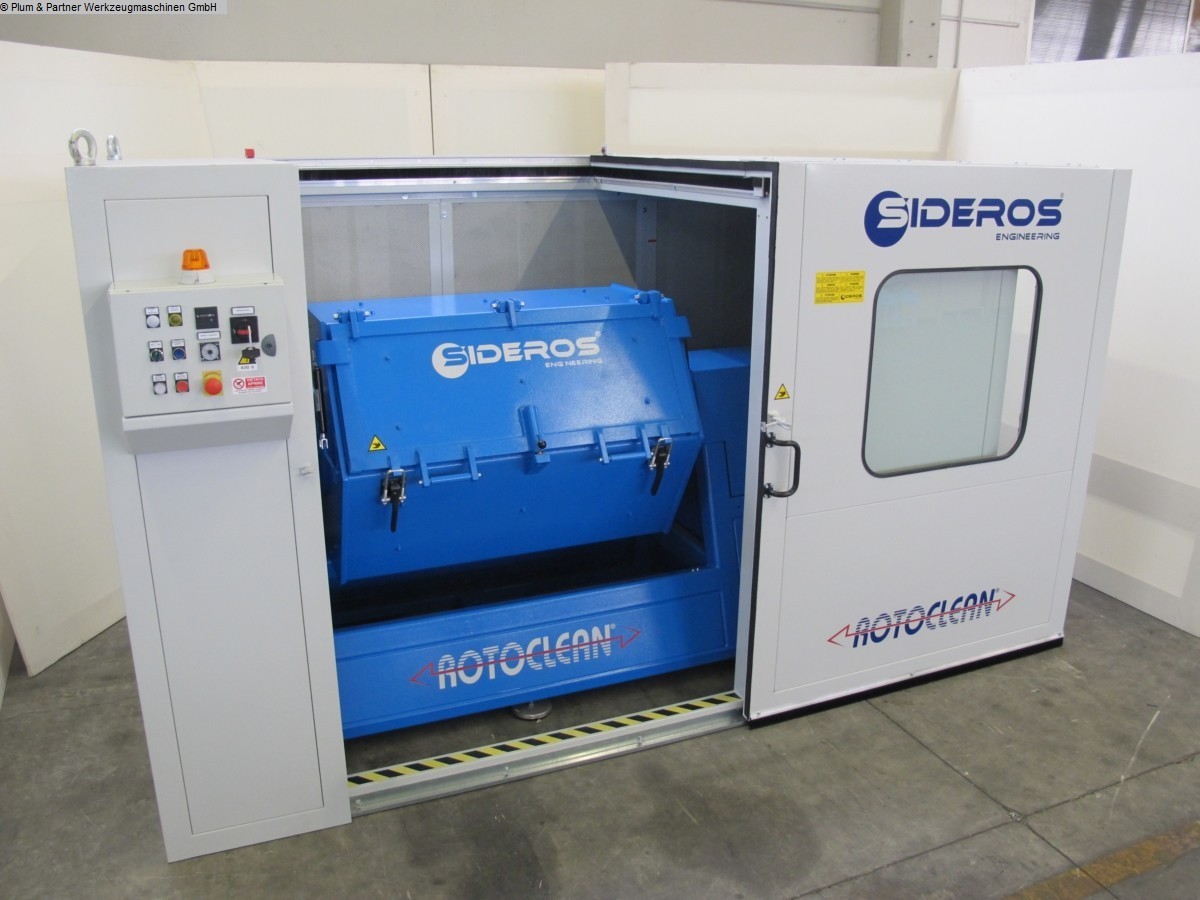

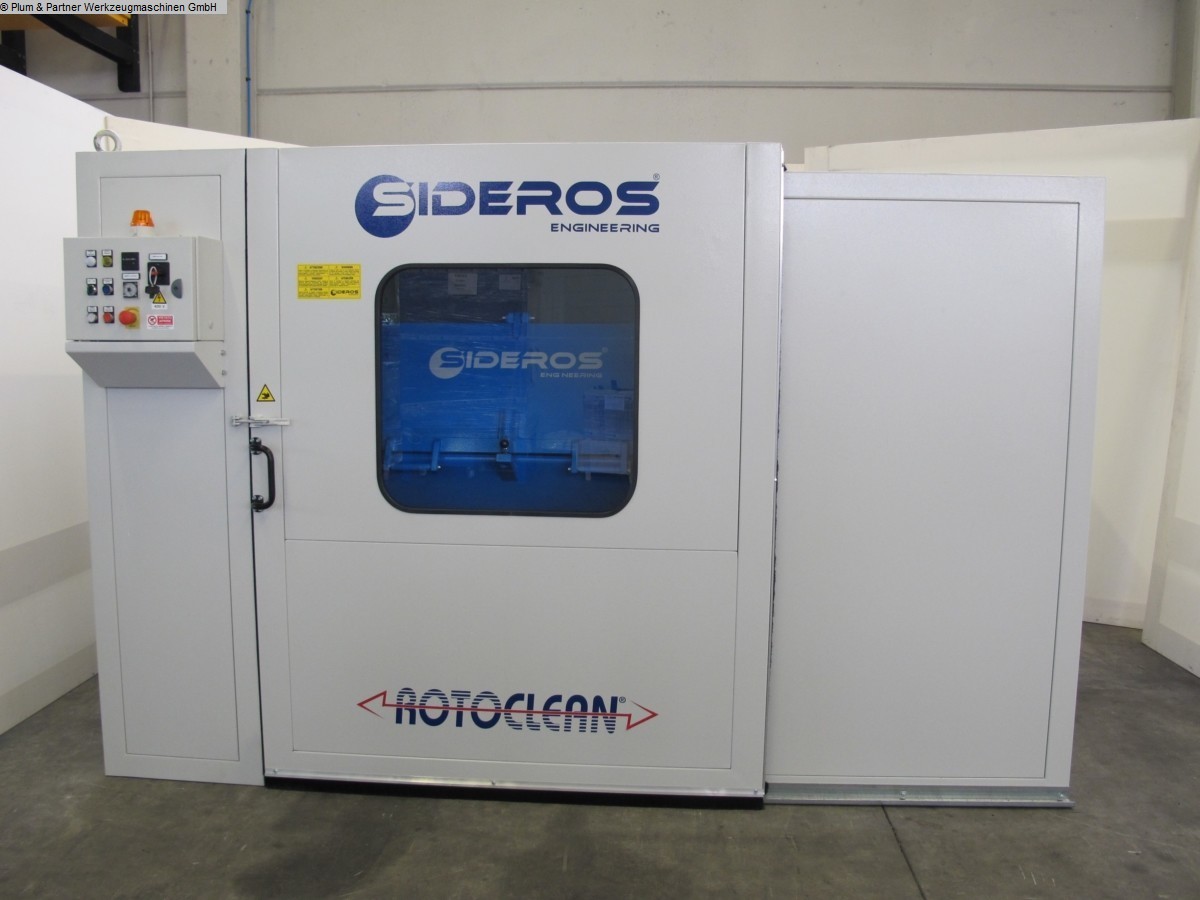

New deburring machine for safe and to efficiently deburr workpieces. Suitable for heavy applications. It is suitable for light to medium applications. The OXY model is available for heavy workpieces. 6 - square drum lined with durable, vulcanized rubber thickness 36 mm, locking cover with gas pressure springs, roller shutters to protect againstthe rotating Container, stable design, easy operation. Control by timer on control surface, main and emergency stop switch. The maximum fillingquantity is 40% of the container volume and corresponds to 800 kg consisting of 500 kg workpieces + 300 kg deburring medium = hard manganese balls Pic 6 or cast iron pentagons Pic 7. These are over Sideros available. Stepless speed adjustment via frequency converter approx. 13-22 rpm (2850,-- €) Soundproof housing (65/70 Db) photo 7 and Sideros ECO B2 dust extraction against Available at extra cost. For complicated workpieces, the manufacturer recommends 100 kg sample parts of the material to be deburred to the factory for testing before ordering. VIDEO on our website. Machine dealer with own stock of 1600 m².
