Datasheet
Machine details
Technical details
- turning diameter over bed260 mm
- turning diameter over slide rest140 mm
- turning length500 mm
- centre height125 mm
- bed width160 mm
- spindle turning speed range16: 110-3600 U/min
- spindle bore28 mm
- face slide travel120 mm
- upper slide-adjustment120 mm
- tailstock quill taper MT2
- tailstock quill adjustment80 mm
- drive motor0,37 / 0,88 kW
- weight of the machine ca.350 kg
- dimensions of the machine ca.1,3 x 0,6 x 1,2 m
kein Zusatz angegeben
Zubehör
- Electric 380 Volt
- chuck140 mm

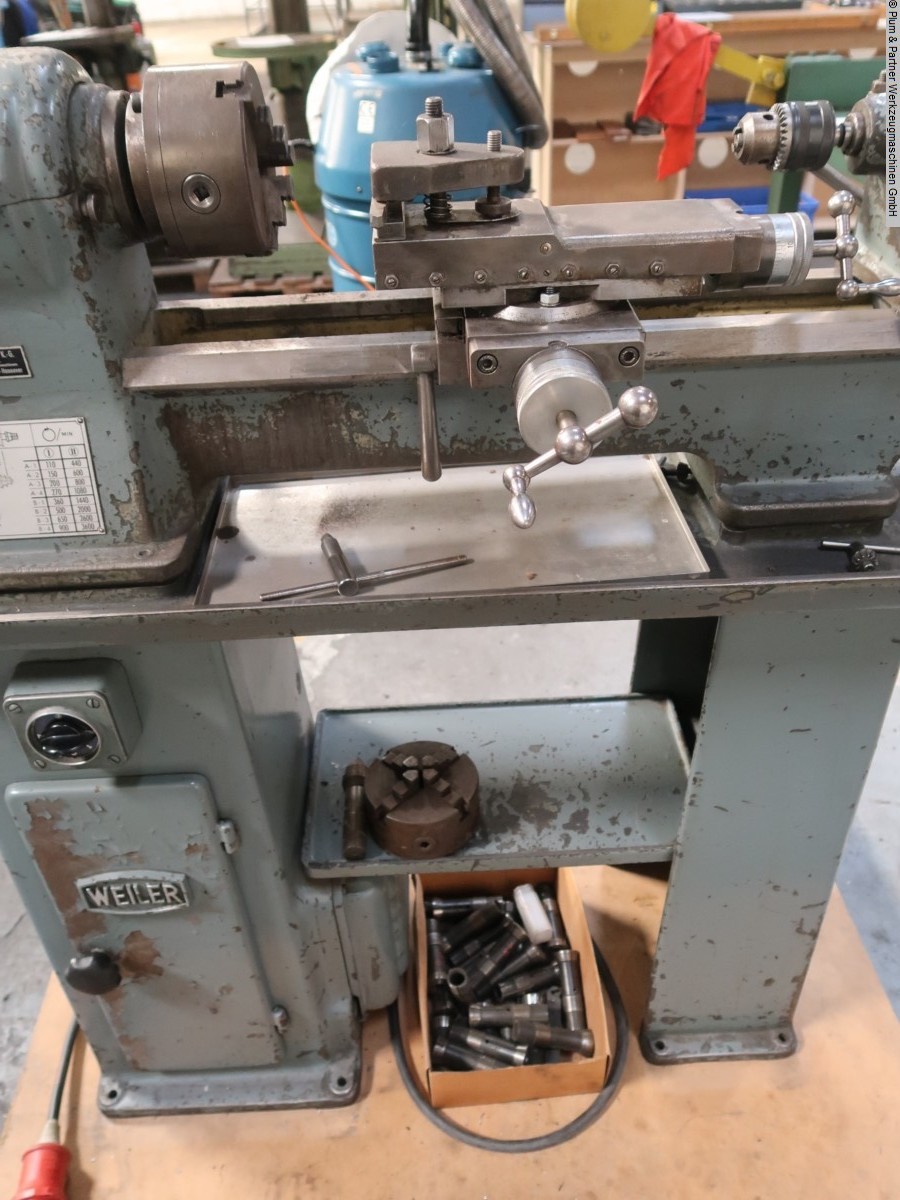

- Collet device with collets25: 1-21 mm
- Boring chuck
Description

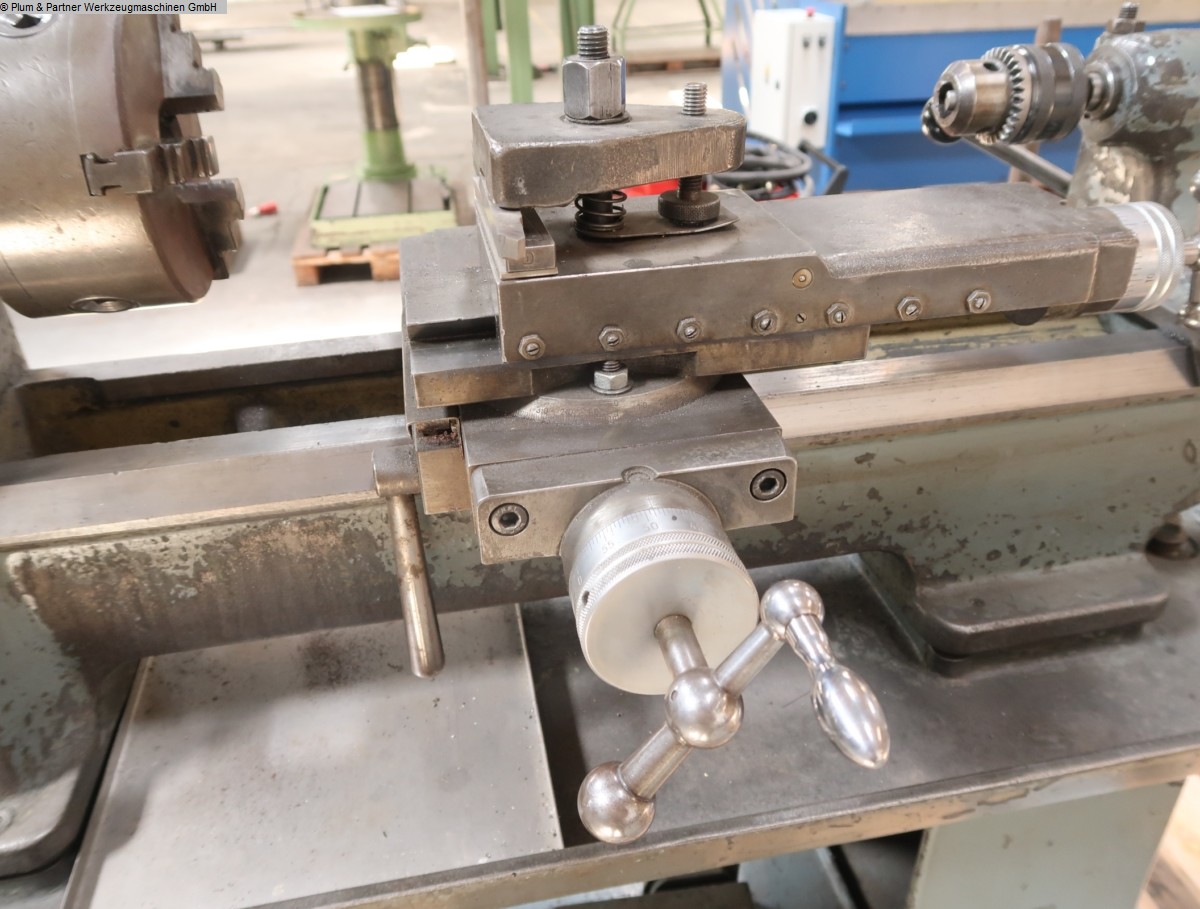

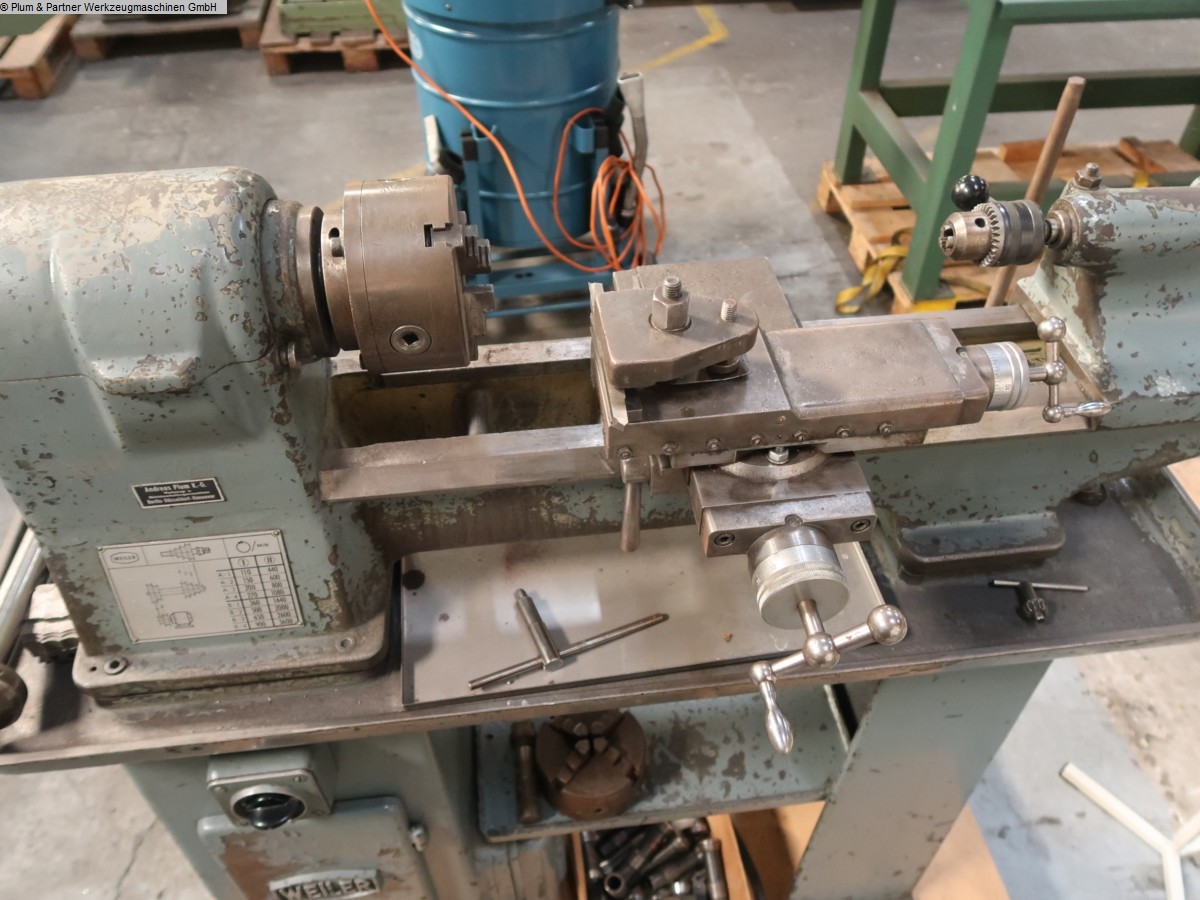

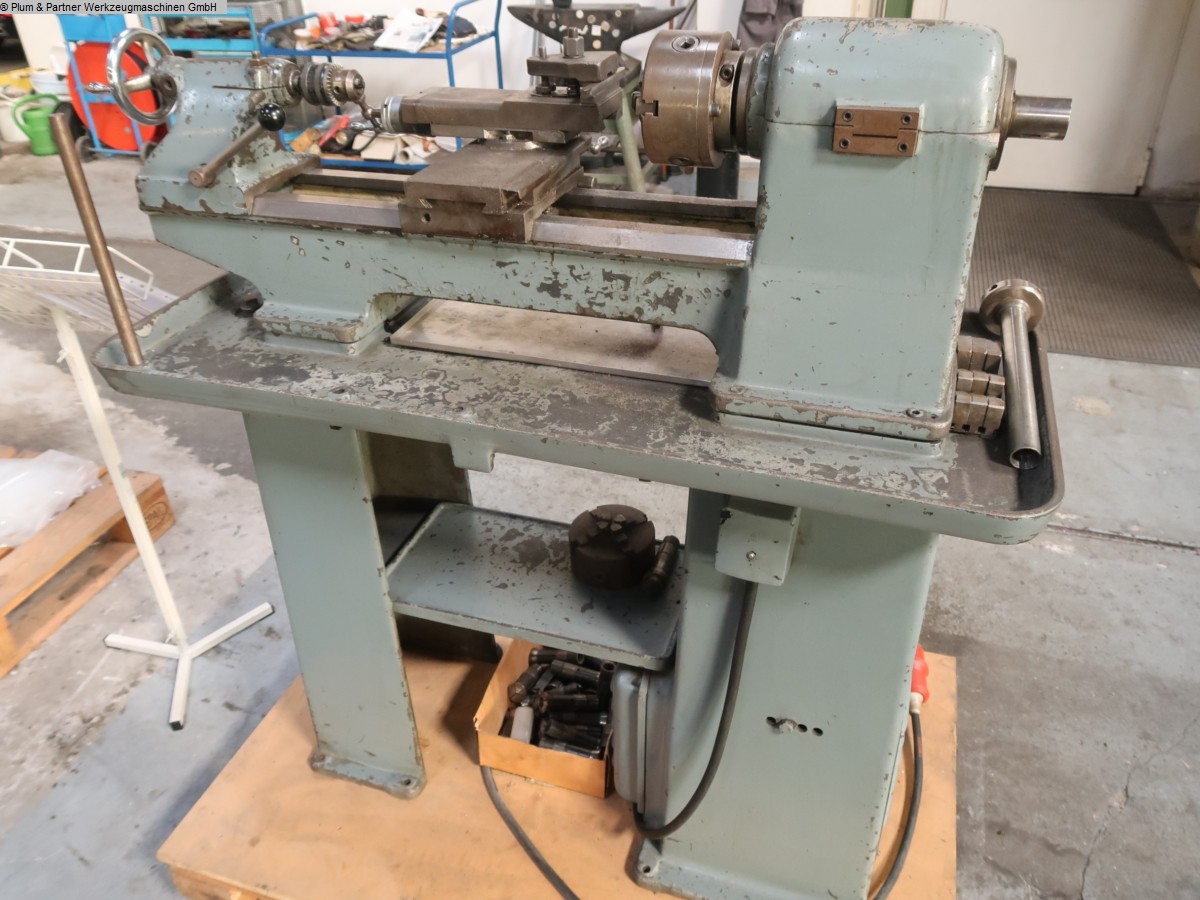

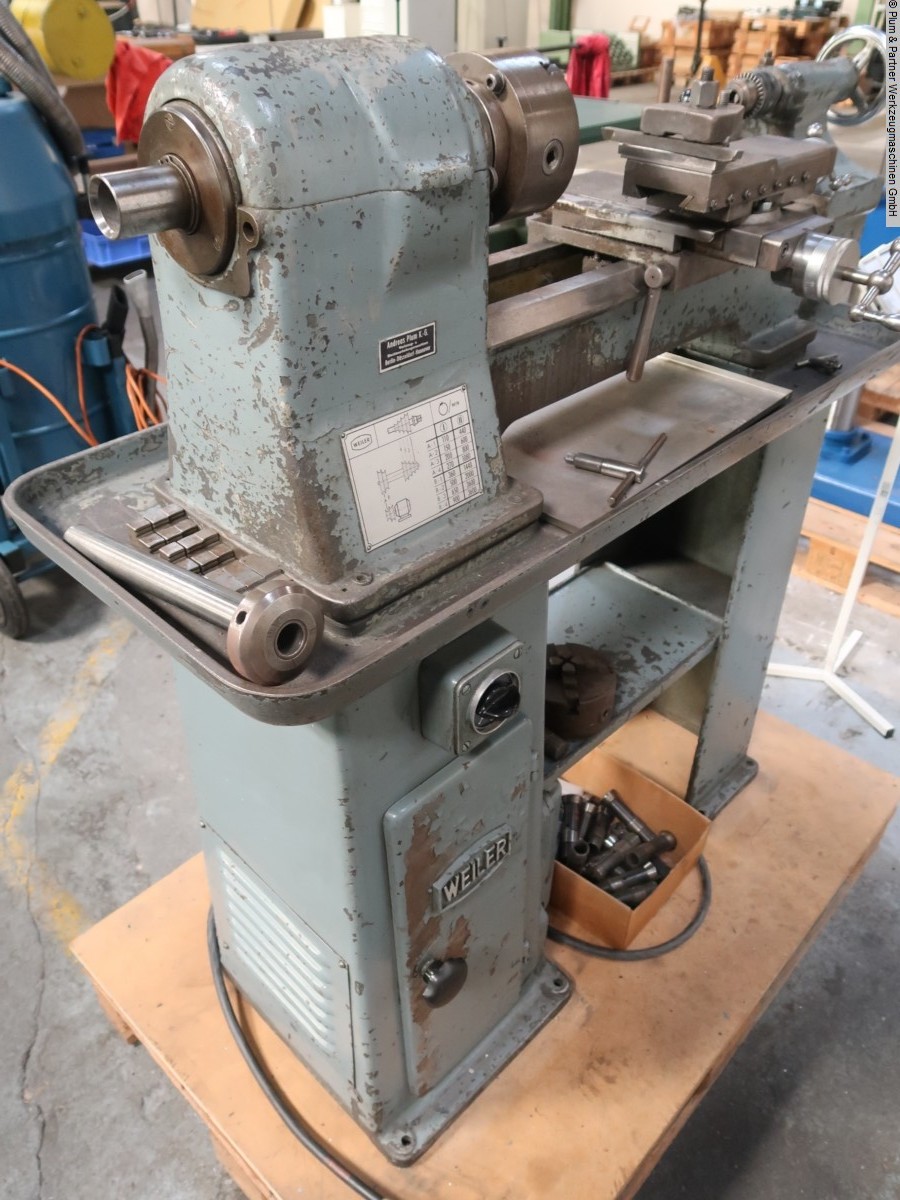

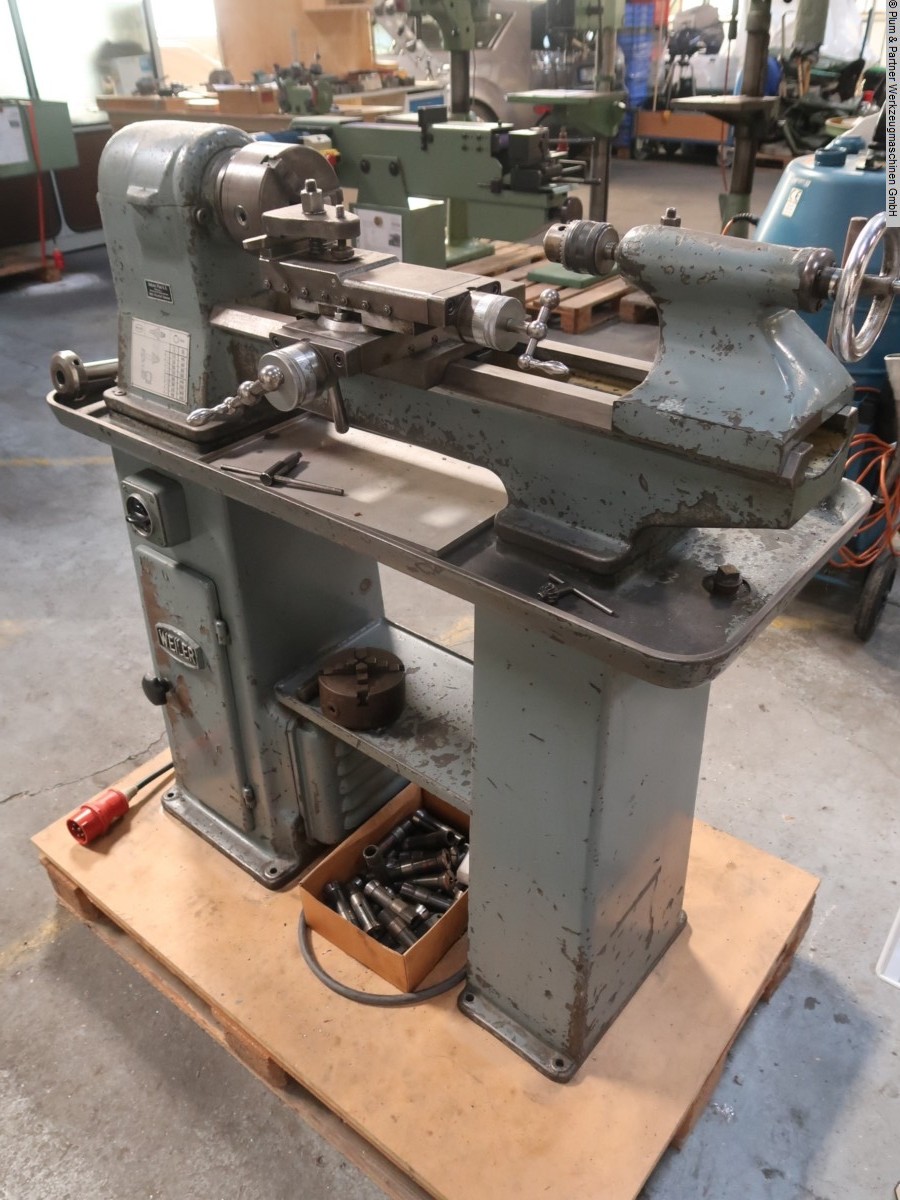

Mechanic's lathe with manual feed and spindle support, drive via V-belt and stepped pulleys as well as 2-pole motor, hardened, finely ground work spindle, support adjustment over the entire bed length using eccentric clamping lever, three-jaw chuck, collet device with pliers, crank tailstock, cast base. Machine dealer with own stock of 1600 m².
