Datasheet
Machine details
Technical details
- bore capacity in steel (diameter)40 mm
- throat350 mm
- bore stroke200 mm
- short taperMK 4
- feeds0,1+0,2+0,3+0,4 mm/U
- table-size570 x 475 mm
- spindle turning speed - stepless60 - 1600 U/min
- column diameter160 mm
- distance between table/spindlemax. 760 mm
- threading ST 60/GG 20 max.M 42 / M 60
- drilling capacity steel/cast iron50 mm
- distance spindle/base plate1255 mm
- total power requirement1,6/2,9 kW
- weight of the machine ca.620 kg
- range L-W-H985 x 630 x 2020 mm
kein Zusatz angegeben

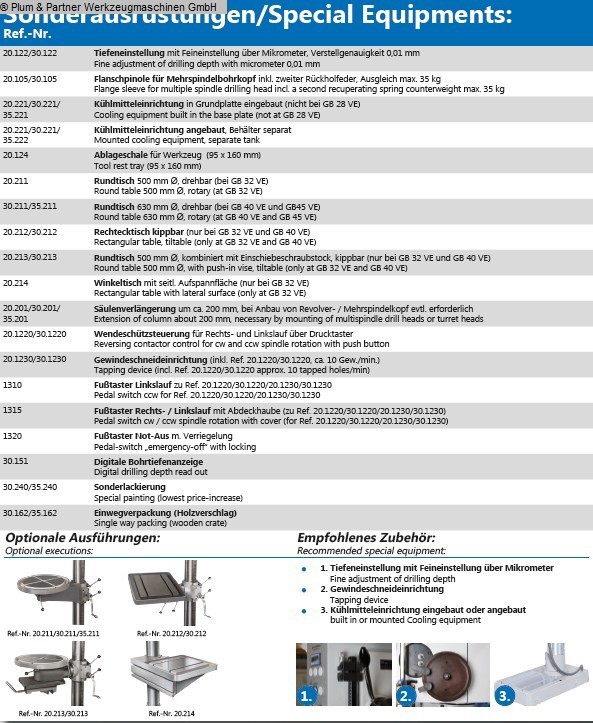

Zubehör
- Electric 400 Volt
- Thread cutting device
- Stepless turning speed regulation
- electromagnetic feed
- Cooling pump in machine base
Description

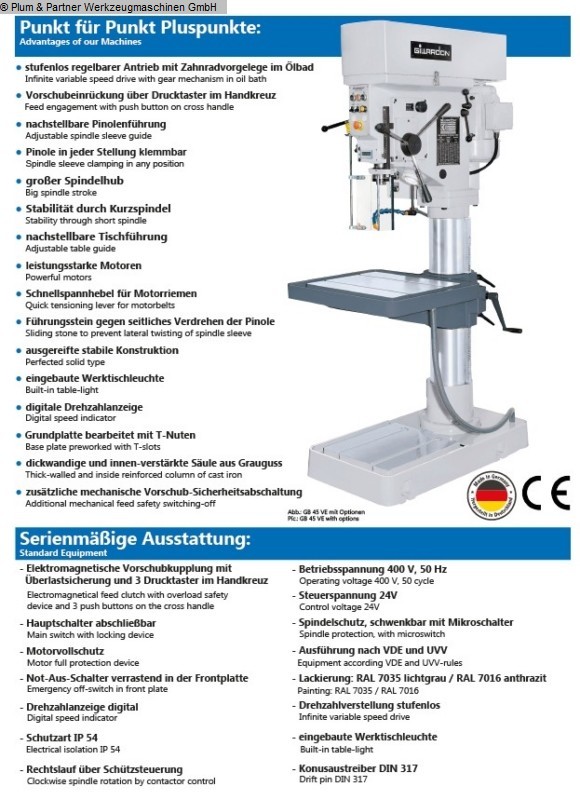

Pillar drill with stepless speed control, 2-stage motor, autom. Spindle feed, electromagnetic feed engagement, tapping device, tachometer, prepared for coolant device. Gillardon = German branded product. Machine dealer with own stock of 1600 m².
