Datasheet
Machine details
Technical details
- bore capacity in steel (diameter)28 mm
- throat295 mm
- bore stroke175 mm
- short taperMK 3
- feeds0,1+0,2+0,3+0,4 mm/U
- table-size510 x 425 mm
- spindle turning speed - stepless60 - 1600 U/min
- column diameter115 mm
- distance between table/spindlemax. 850 mm
- threading ST 60/GG 20 max.M 20 / M 24
- drilling capacity steel/cast iron32 mm
- distance spindle/base plate1320 mm
- total power requirement0,7/1,3 kW
- weight of the machine ca.410 kg
- range L-W-H960 x 650 x 1950 mm
kein Zusatz angegeben

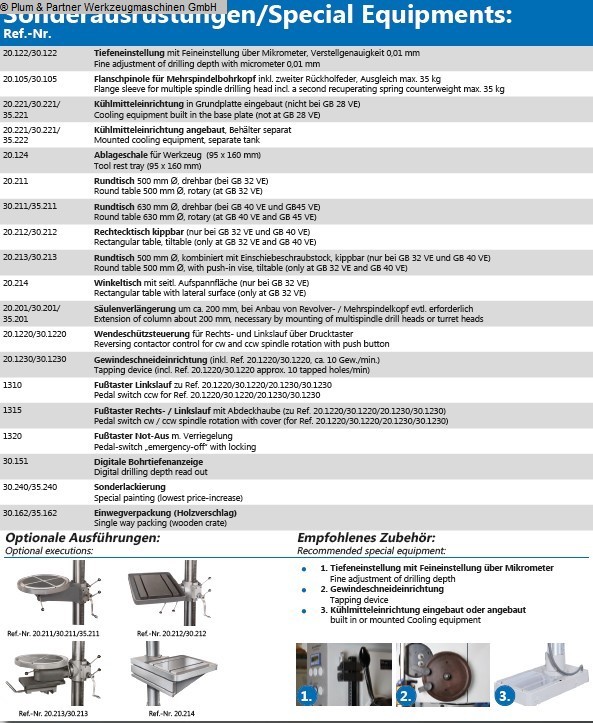

Zubehör
- Electric 400 Volt
- Thread cutting device
- Stepless turning speed regulation
- Colling unit with separate container
- electromagnetic feed
Description

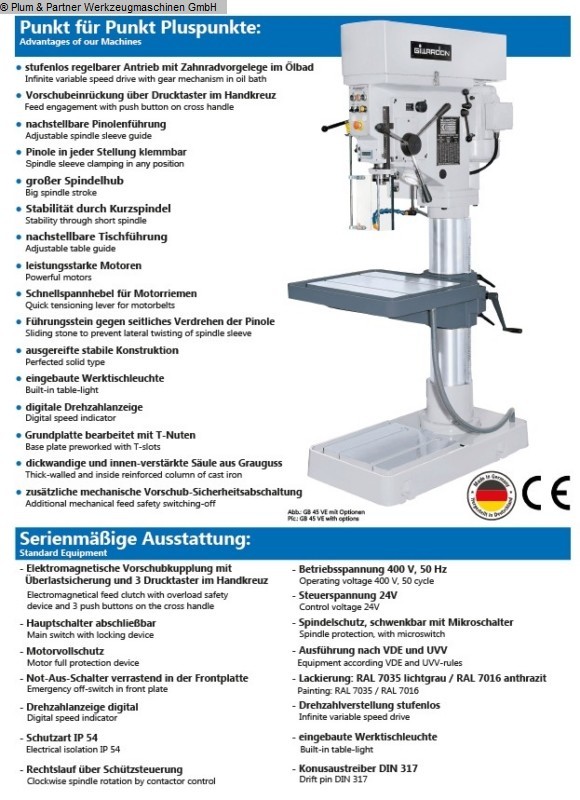

Pillar drill with stepless speed control, 2-stage motor, autom. Spindle feed, electromagnetic feed engagement, tapping device, tachometer, prepared for coolant device. Gillardon = German branded product. Machine dealer with own stock of 1600 m².
